Schneider Electric XVGU3SWV Usb Towerlight, Dir Mnt Fix Plate Vjd
Schneider Electric
$105.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric XVGU3SWV Usb Towerlight, Dir Mnt Fix Plate Vjd
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

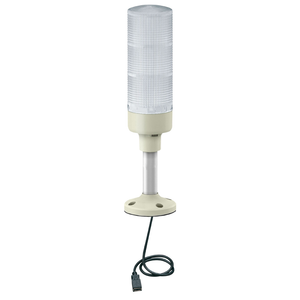

This XVGU multi-color USB programmable tower light has 3 tiers, whose color and flashing scheme can be independantly configured within the HMI application. It is designed to connect directly with Magelis HMI using a USB connection and clearly display the status of your machines in applications such as automotive, machine tool, material handling, packaging, assembly stations, conveyors. It offers configurable color combinations, flashing patterns and buzzer sounds. Included 82dB loud buzzer for alerting on critical machine statuses. Adjustable flashing schemes to allow for more advanced alerting to workfloor staff around the machine.
- Ambient Air Temperature For Operation:
- 0-55 °C
- Current Consumption:
- 400 mA
- Light Source:
- LED steady or flashing multi-colour
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Device Mounting:
- direct mounting
- Light Block Color:
- clear/clear/clear
- Ambient Air Temperature For Storage:
- -35-70 °C
- Connector Type:
- USB type A female
- Product Certifications:
- GOST || cUL || CE || RCM || UL 508
- Flashing Frequency:
- 2 Hz flashing LED unit || 1 Hz flashing LED unit
- Net Weight:
- 0.3 kg
- Noise Level:
- 82-82 dB 2 tone buzzer)1 m
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Ip Degree Of Protection:
- IP54
- Electrical Shock Protection Class:
- class I
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Power Consumption In W:
- 2 W
- Range Of Product:
- Harmony XVGU
- Standards:
- IEC 61000-6-2 || IEC 61000-6-4
- Product Compatibility:
- Vijeo Designer 4.6 indoor use only || HMIGTO || XBTGT.... || XBTGK.... || XBTGC1. || XBTGC2. || XBTGH
- Component Name:
- XVGU
- China Rohs Regulation:
- X
- Rohs Exemption Information:
- Yes
- Environmental Disclosure:
- ENVPEP070907EN
- Indicator Bank Base Type:
- base with integrated buzzer
- Sustainable Offer Status:
- Green Premium product
- Product Or Component Type:
- USB configurable monolithic tower light
- Beacon Or Indicator Bank Unit Type:
- 3 illuminated units
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Mounting Diameter:
- 60 mm
- Circularity Profile:
- N/A
- [Us] Rated Supply Voltage:
- 5 V DC
- Sound Frequency:
- 2700 Hz || 3800 Hz
- Warranty:
- 18 months
- Sound Signalling:
- buzzer
- Material:
- PC: globe
- Mercury Free:
- Yes
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
