Schneider Electric

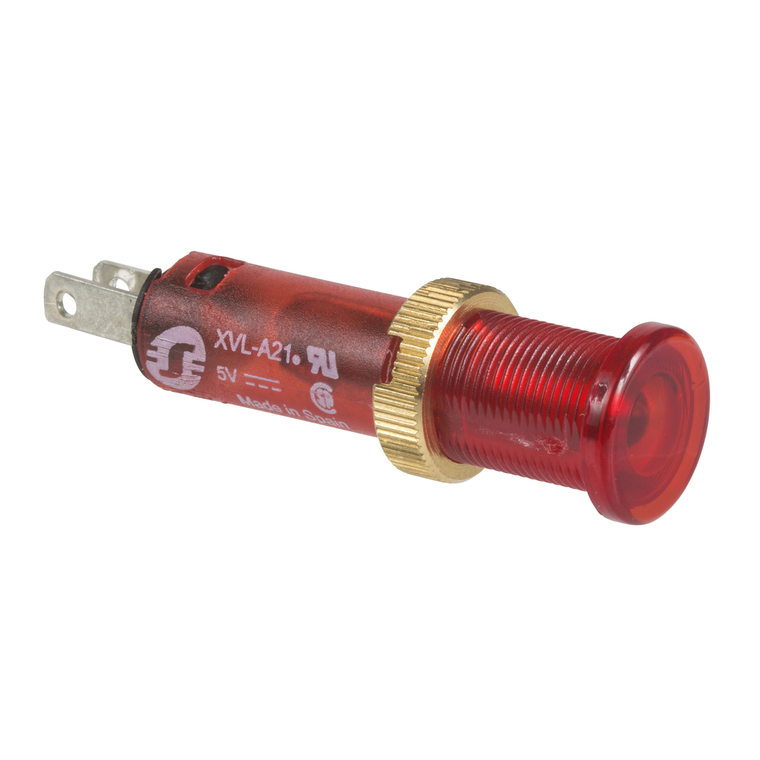

Schneider Electric XVLA234 Round Pilot Light And 8 Ip 40 Red Integr

(No reviews yet) Write a Review
SKU:
XVLA234
UPC:
3389110651386
Condition:
New
Light Block Colour:
red
Net Weight:
0.003 kg
Range Of Product:
Harmony XVL
Environmental Disclosure:
ENVPEP111048EN
Depth:
36 mm
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Warranty:
18 months
Sustainable Offer Status:
Green Premium product
Rohs Exemption Information:
Yes
Terminals Description Iso N°1:
(X1-X2)PL
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Component Name:
XVL
Protection Type:
built-in by diode || integral ballast resistor
Nominal Voltage Limit:
0.8...1.1 Un
Product Certifications:
CSA || UL
Current Consumption:
18 mA
Connections - Terminals:
tag for Faston connectors 2.8 x 0.5 mm || tag for soldering connectors
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Mounting Diameter:
8 mm
Bulb Lifespan:
100000 h
[Us] Rated Supply Voltage:
24 V
Ip Degree Of Protection:
IP65 IEC 60529 with seal XVLZ911) || IP65 NF C 20-010 with seal XVLZ911) || IP40 IEC 60529 || IP40 NF C 20-010
Ambient Air Temperature For Operation:
-25-70 °C
Height:
10 mm
Product Or Component Type:
LED pilot light with integral lens cap
Width:
10 mm
Protective Treatment:
TC
China Rohs Regulation:
X
Circularity Profile:
N/A
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Light Source:
covered LED
Mercury Free:
Yes
Overvoltage Category:
class 3 IEC 60536 || class 3 NF C 20-030
Supply Circuit Type:
DC
[Ui] Rated Insulation Voltage:
50 V IEC 60947-1
Ambient Air Temperature For Storage:
-40-70 °C
Brochure:
View
Datasheet:
View
$32.80

Description

This Harmony XVLA234 is a red pilot light diameter 8mm. Its degree of protection is IP40/IP65 (with seal). It has covered LED included, 24V, faston connection. It is part of the range Harmony XVL diameter 8-12 mm plastic pilot lights.
