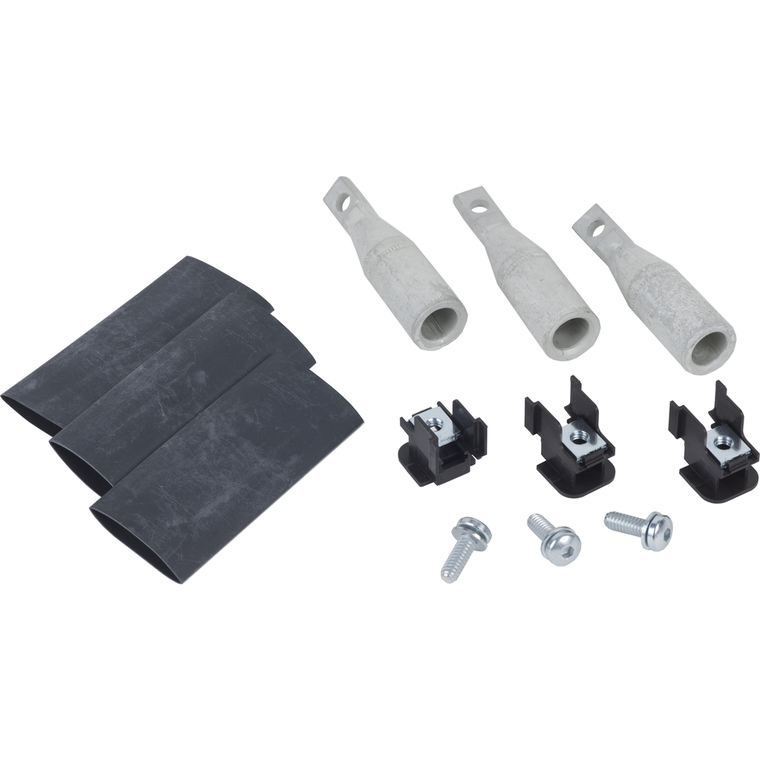

Schneider Electric YA150HD Circuit Breaker Compression Lug Kit 3
Schneider Electric
$294.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
YA150HD is a PowerPact H-FRAME molded case circuit breaker, 150A, compression lug kit. This lug is for a unit mount and is made of aluminum. Certified to CSA & UL Standards. The PowerPact H-, J-, and L-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. Both copper and aluminum compression lug kits are available for the H-, J-, and L-frame circuit breakers. Each kit contains required insulators and all mounting hardware. Compression lugs require the long lug cover pack. The PowerPact Advantage. Proven Performance, Industry-leading circuit breaker innovation and protection for heavy-duty commercial and industrial applications. Smart, Integrated metering options provide a cost-effective solution to reduce energy consumption, optimize energy costs, and improve energy availability for your facilities. Flexible, Full range of thermal-magnetic and electronic trip molded case circuit breakers from 15 A to 3000 A, delivering the ratings, configurations, and operators for your unique applications. Simple, Common catalog numbers, standardized ratings, and a full range of field-installable accessories make product selection, installation and maintenance easier than ever. Common Design Features, Mounting holes, door trim, and handle accessories.
- Mercury Free:
- Yes
- Line Rated Current:
- 150-150 A
- Mounting Mode:
- compression || unit mount
- Pvc Free:
- Yes
- California Proposition 65:
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Rohs Exemption Information:
- Yes
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Warranty:
- 18 months
- Product Or Component Type:
- lug
- Circularity Profile:
- ENVEOLI1311006EN
- Eu Rohs Directive:
- Compliant with Exemptions
- Environmental Disclosure:
- ENVPEP1311006EN
- Range Of Product:
- PowerPact H
- Awg Gauge:
- AWG 1/0...AWG 4/0 aluminium/copper
- Material:
- aluminium
- Accessory / Separate Part Category:
- connection accessory
- Product Certifications:
- CSA || UL
- Tightening Torque:
- 9.0-10.2 N.m (AWG 1/0...AWG 4/0)
- Quantity Per Set:
- set of 3
- Sustainable Offer Status:
- Green Premium product
