Schneider Electric

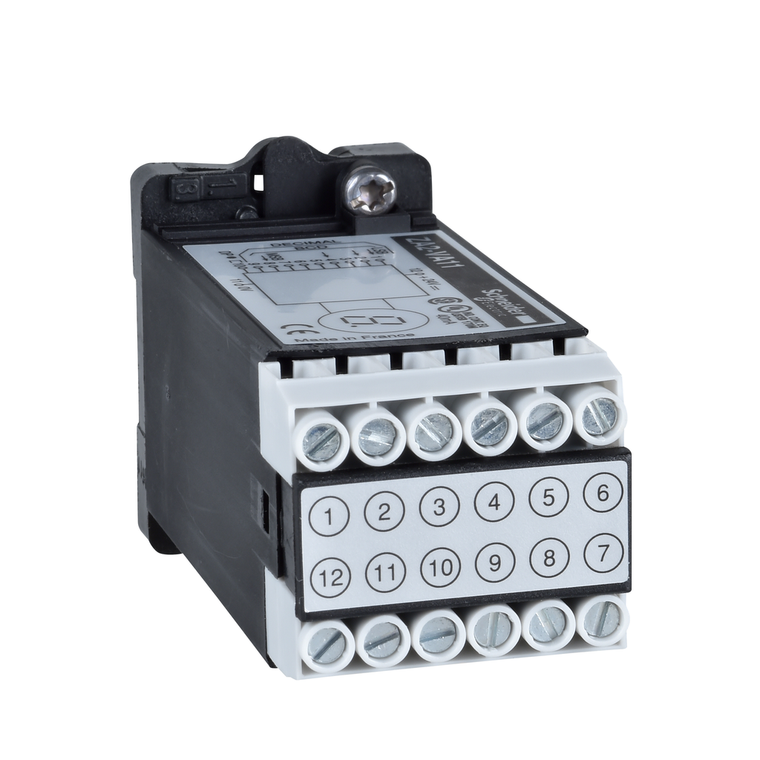

Schneider Electric ZA2VA11 Display Body

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric ZA2VA11 Display Body

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZA2VA11

UPC:

3389110648966

MPN:

Condition:

New

Product Certifications:

UL || CSA

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

[Us] Rated Supply Voltage:

24 V DC

Protection Type:

reverse polarity protection

Logic Input:

positive

Net Weight:

0.057 kg

Voltage State 0 Guaranteed:

-30...5 V

Mercury Free:

Yes

Electronic Decoding:

decimal + BCD

Rohs Exemption Information:

Yes

Ambient Air Temperature For Storage:

-40-85 °C

Range Of Product:

Harmony

Ambient Air Temperature For Operation:

-25-70 °C

Current State 1 Guaranteed:

4...9.5 mA

Sustainable Offer Status:

Green Premium product

Device Mounting:

fixing hole 22.3 mm

Shock Resistance:

180 gn 11 ms IEC 60068-2-27

Vibration Resistance:

10 gn 10-500 Hz)IEC 60068-2-6

Circularity Profile:

ENVEOLI1710010EN

Product Or Component Type:

digital display body

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Warranty:

18 months

Ip Degree Of Protection:

IP65 conforming to IEC 60529 || IP65 conforming to NF C 20-010

Connections - Terminals:

screw connectors, 0.5 x 2.5 mm²

Voltage State 1 Guaranteed:

13...30 V

Current State 0 Guaranteed:

<= 1.4 mA

Supply Voltage Limits:

13-30 V

Mounting Support:

panel

Electrical Shock Protection Class:

class II IEC 60536 || class II NF C 20-030

Current Consumption:

<= 36 mA 30 V || <= 40 mA 24 V

Environmental Disclosure:

ENVPEP1710010EN

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

China Rohs Regulation:

X

Datasheet:

View
