Schneider Electric ZARB18W Base Station 18R Cable Gland
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

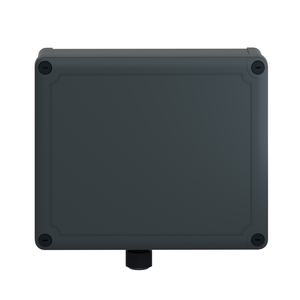

This Harmony eXLhoist / XAR black base station (receiver) has 18 relays outputs with 2 safety relays. This black base station (receiver) is designed as receiver for wireless remote control system. It is compatible with the remote control device ZART8D. It has 16 relay outputs with 2 safety relays and has wired connection cable gland. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP65, making it ideal for operation in harsh (heavy) environments. It provides complete innovative crane operator control solutions to help improve machine and crane operator efficiency. Base station (receiver) has a unique identification code to allow the consistent and stable connection with its compatible remote control system.
- Relative Humidity:
- 0-97 %
- Ambient Air Temperature For Operation:
- -25-70 °C
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Switching Capacity In Va:
- 5 VA DC || 26 VA AC
- Product Specific Application:
- material handling || hoisting applications
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Safety Outputs:
- 2 NC relay outputs
- Shock Resistance:
- 15 gn 11 ms
- Service Life:
- 10 year(s)
- Ip Degree Of Protection:
- IP65
- Rohs Exemption Information:
- Yes
- Ambient Air Temperature For Storage:
- -40-70 °C
- Fixing Mode:
- 4 holes
- [Us] Rated Supply Voltage:
- 24...240 V AC/DC
- Product Certifications:
- CSA || CE || UL || KC || C-tick || EAC
- Number Of Relays:
- 18
- Relay Type:
- motion relay outputs 9 NO || auxiliary relay outputs 7 NO || auxiliary relay outputs 2 NC + 2 NO
- Standards:
- IEC 61000-6-2
- Height:
- 305 mm
- Maximum Switching Current:
- 6.8 mA
- Communication Network Type:
- wireless bluetooth low energy
- Mechanical Durability:
- 1000000 cycles
- Number Of Inputs:
- 12
- Number Of Channels:
- 40
- Range Of Product:
- Harmony eXLhoist
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Maximum Switching Voltage:
- 240 V AC/DC + 20 %)
- Vibration Resistance:
- 0.075 mm 10-55 Hz)
- Electromagnetic Compatibility:
- resistance to electrostatic discharge - test level: 4 kV class B (on contact) conforming to IEC 61000-4-2 || resistance to electrostatic discharge - test level: 8 kV class B (in air) conforming to IEC 61000-4-2 || resistance to radiated electromagnet
- Net Weight:
- 1.45 kg
- Environmental Disclosure:
- ENVPEP1404028EN
- Radio Agreement:
- SRRC || FCC || ANATEL || ICASA || RSS || ARIB
- Mercury Free:
- Yes
- Provided Equipment:
- internal antenna
- Nominal Output Current:
- 0.54 A 48 V AC IEC 60947-5-1
- Material:
- PC (polycarbonate)
- Product Or Component Type:
- base station
- Electrical Durability:
- 100000 cycles
- Circularity Profile:
- ENVEOLI1404028EN
- Cable Entry:
- cable gland
- Device Short Name:
- ZARB
- Transmission Frequency:
- 2.4 GHz
- Width:
- 280 mm
- Nema Degree Of Protection:
- NEMA 4
- Pollution Degree:
- 3
- Maximum Sensing Distance:
- 100 m in free field
- China Rohs Regulation:
- X
- Depth:
- 100 mm
- Number Of Alarms:
- 6 programmable alarms
