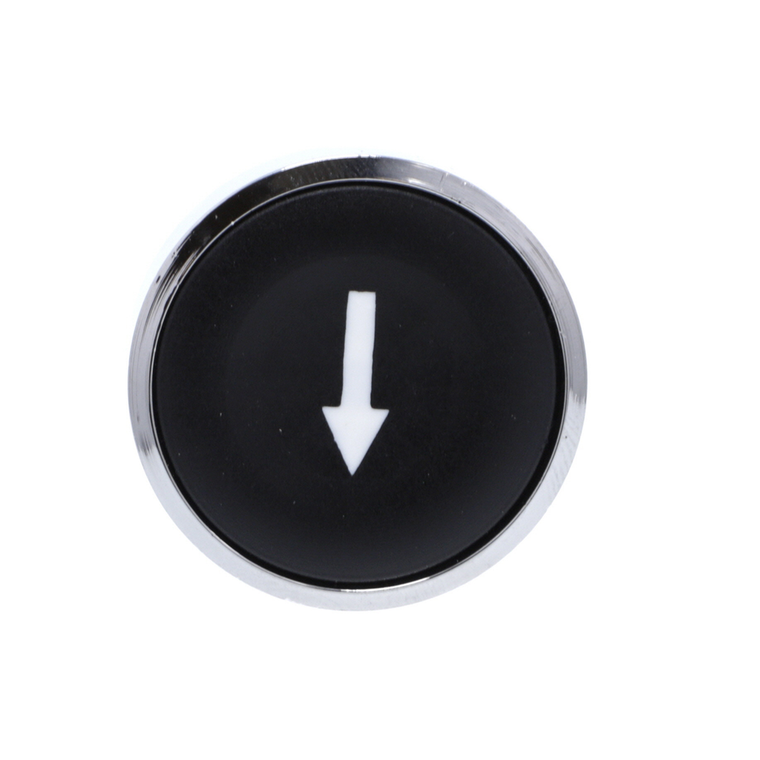

Schneider Electric ZB4BA335 Pushbutton
Schneider Electric
$13.67
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony XB4, black button head operates with a spring return mechanism and has a chromium-plated metal bezel. This button head provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
- China Rohs Regulation:
- X
- Cad Overall Width:
- 29 mm
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Device Presentation:
- basic element
- Ik Degree Of Protection:
- IK06 IEC 50102
- Device Short Name:
- ZB4
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Rohs Exemption Information:
- Yes
- Warranty:
- 18 months
- Cad Overall Depth:
- 28 mm
- Reach Free Of Svhc:
- Yes
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Head Type:
- standard
- Electrical Composition Code:
- C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting
- Mounting Diameter:
- 22 mm
- Sale Per Indivisible Quantity:
- 1
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Environmental Disclosure:
- ENVPEP1808008EN
- Sustainable Offer Status:
- Green Premium product
- Mechanical Durability:
- 10000000 cycles
- Range Of Product:
- Harmony XB4
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Type Of Operator:
- spring return
- Overvoltage Category:
- class I IEC 60536
- Bezel Material:
- chromium plated metal
- Protective Treatment:
- TH
- Mercury Free:
- Yes
- Circularity Profile:
- ENVEOLI1808008EN
- Cad Overall Height:
- 29 mm
- Shape Of Signaling Unit Head:
- round
- Product Or Component Type:
- head for non-illuminated push-button
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Standards:
- IEC 60947-5-4 || JIS C8201-5-1 || CSA C22.2 No 14 || IEC 60947-1 || UL 508 || IEC 60947-5-5 || IEC 60947-5-1 || JIS C8201-1
- Ambient Air Temperature For Storage:
- -40-70 °C
- Product Certifications:
- DNV || LROS (Lloyds register of shipping) || CSA || GL || BV || UL Listed
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Toxic Heavy Metal Free:
- Yes
- Operator Profile:
- black flush, down arrow white)
- Ambient Air Temperature For Operation:
- -40-70 °C
