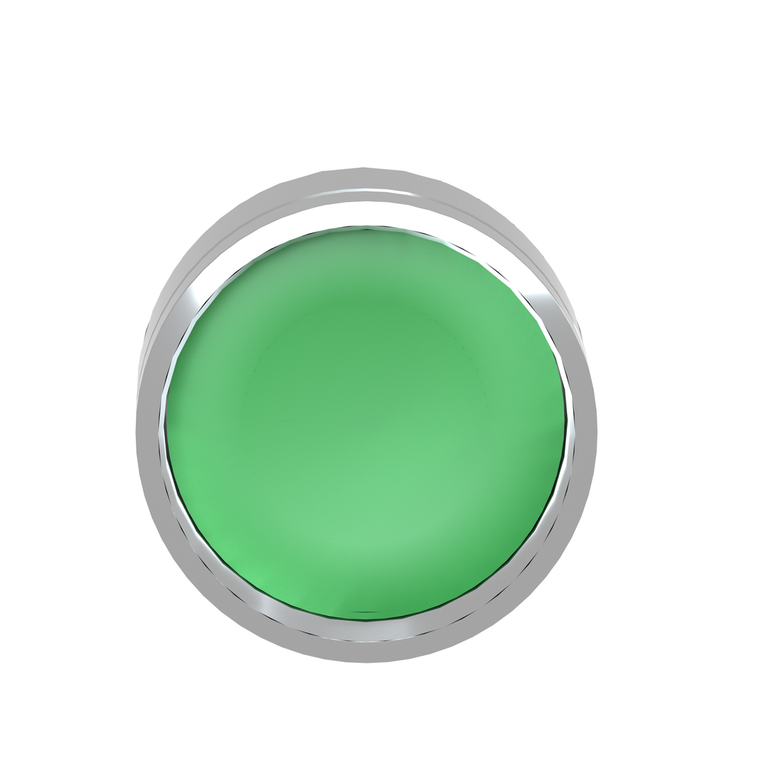

Schneider Electric ZB4BA36 Pushbutton Operator Head
Schneider Electric
$25.73
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony XB4, recessed high guard green button head operates with a spring return / impulse mechanism. This button head provides a robust and ergonomic interface for controlling your machines thanks to its recessed high guard head. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly and is clearly distinguishable visually at a distance thanks to its clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
- Operator Additional Information:
- high guard
- Circularity Profile:
- ENVEOLI1808008EN
- China Rohs Regulation:
- X
- Type Of Operator:
- spring return
- Mounting Diameter:
- 22 mm
- Shape Of Signaling Unit Head:
- round
- Protective Treatment:
- TH
- Cad Overall Height:
- 29 mm
- Range Of Product:
- Harmony XB4
- Sale Per Indivisible Quantity:
- 1
- Product Or Component Type:
- head for non-illuminated push-button
- Reach Free Of Svhc:
- Yes
- Warranty:
- 18 months
- Electrical Composition Code:
- C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting
- Ambient Air Temperature For Storage:
- -40-70 °C
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Head Type:
- standard
- Rohs Exemption Information:
- Yes
- Device Short Name:
- ZB4
- Cad Overall Width:
- 29 mm
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ik Degree Of Protection:
- IK06 IEC 50102
- Product Certifications:
- LROS (Lloyds register of shipping) || DNV || GL || CSA || BV || UL Listed
- Operator Profile:
- green recessed, unmarked
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Device Presentation:
- basic element
- Bezel Material:
- chromium plated metal
- Standards:
- IEC 60947-5-4 || IEC 60947-5-1 || IEC 60947-1 || JIS C8201-5-1 || IEC 60947-5-5 || CSA C22.2 No 14 || UL 508 || JIS C8201-1
- Mechanical Durability:
- 10000000 cycles
- Cad Overall Depth:
- 31 mm
- Sustainable Offer Status:
- Green Premium product
- Mercury Free:
- Yes
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Overvoltage Category:
- class I IEC 60536
- Ambient Air Temperature For Operation:
- -40-70 °C
- Environmental Disclosure:
- ENVPEP1808008EN
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Toxic Heavy Metal Free:
- Yes
