Schneider Electric ZB4BA73133 Metal Double Headed Pushbuttons With Sto

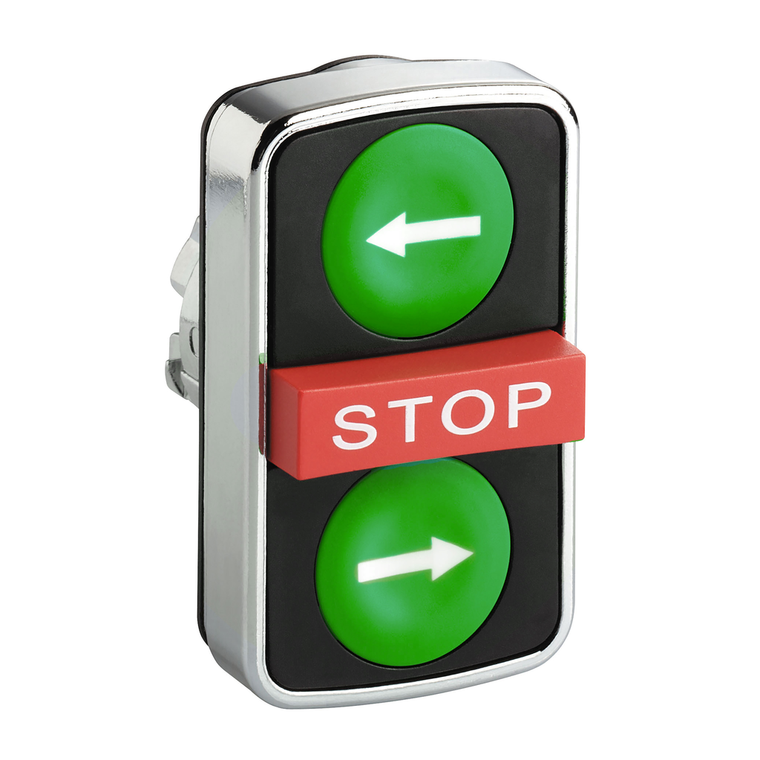

This Harmony XB4, triple head has 1 red and 2 green buttons, operates with a spring return / impulse mechanism. It is marked with "left arrow", "STOP" and "right arrow" symbols. This 3-function head provides a complete 3 button interface to your machines with a single panel cut-out. It is easily installed into a standard 22mm diameter cut-outs and assembled with a collar and contact blocks to fulfill a large variety of functions. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 and IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
- Ip Degree Of Protection:
- IP69 IEC 60529
- Device Short Name:
- ZB4
- Environmental Disclosure:
- ENVPEP1808008EN
- Colour Of Marking:
- black marking when white caps || white marking when green, red or black caps
- Circularity Profile:
- ENVEOLI1808008EN
- Ik Degree Of Protection:
- IK06 IEC 50102
- Operators Description:
- green ''right arrow'' - green ''left arrow'' - red ''STOP''
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Head Type:
- standard
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Electrical Composition Code:
- C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting
- Product Or Component Type:
- head for triple-headed push-button
- Ambient Air Temperature For Storage:
- -40-70 °C
- Net Weight:
- 0.056 kg
- Sale Per Indivisible Quantity:
- 1
- Mounting Diameter:
- 22 mm
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Sustainable Offer Status:
- Green Premium product
- Range Of Product:
- Harmony XB4
- Operator Profile:
- red projecting, STOP white) || green flush, left arrow white) || green flush, right arrow white)
- Standards:
- JIS C8201-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || EN/IEC 60947-5-5 || UL 508 || EN/IEC 60947-1 || JIS C8201-1
- Bezel Material:
- chromium plated metal
- Rohs Exemption Information:
- Yes
- Operator Profile:
- 2 flush - 1 central projecting STOP push-buttons
- Ambient Air Temperature For Operation:
- -25-70 °C
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Toxic Heavy Metal Free:
- Yes
- Shape Of Signaling Unit Head:
- rectangular
- Electrical Shock Protection Class:
- class I IEC 60536
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Mechanical Durability:
- 1000000 cycles
- Device Presentation:
- basic element
- Reach Free Of Svhc:
- Yes
- Mercury Free:
- Yes
- China Rohs Regulation:
- X
- Product Certifications:
- GL || LROS (Lloyds register of shipping) || DNV || CSA || BV || UL Listed
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Warranty:
- 18 months
- Type Of Operator:
- spring return
