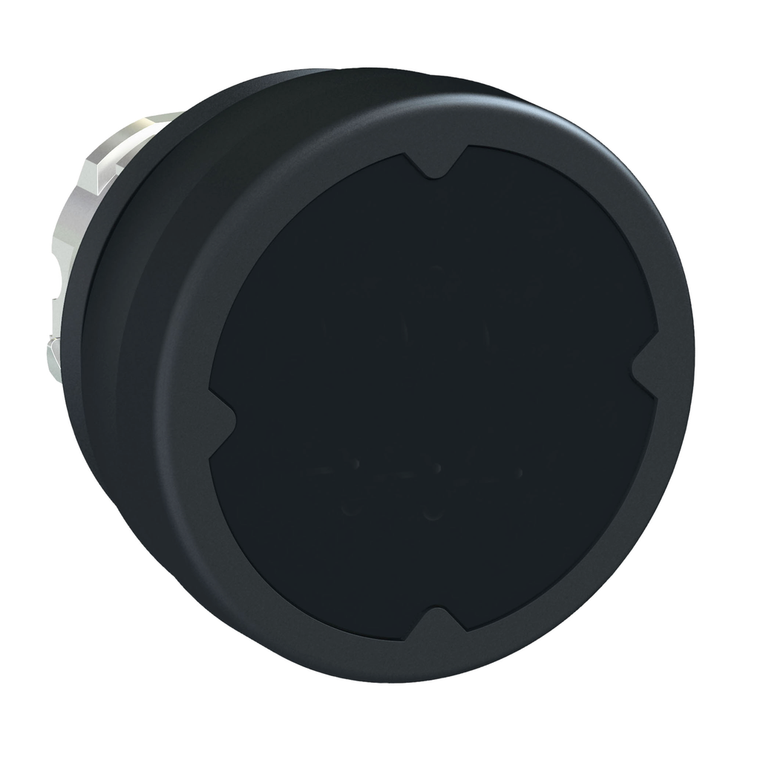

Schneider Electric ZB4BC280 Pushbutton For Harsh Enviroment, Black,
This Harmony XB4, flush black button head operates with a spring return / impulse mechanism, is used in harsh environment. This button head provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
- Type Of Operator:
- spring return
- Group Of Product:
- flush unmarked
- Standards:
- CSA C22.2 || UL 508 || IEC 60947-5-1 || IEC 60947-1
- Environmental Disclosure:
- ENVPEP1808008EN
- Electrical Shock Protection Class:
- class I IEC 61140
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Ambient Air Temperature For Storage:
- -40-85 °C
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Warranty:
- 18 months
- Ambient Air Temperature For Operation:
- -40-70 °C
- Circularity Profile:
- ENVEOLI1808008EN
- Cad Overall Width:
- 37 mm
- Reach Free Of Svhc:
- Yes
- Net Weight:
- 0.036 kg
- Cap/Operator Or Lens Colour:
- black
- Sale Per Indivisible Quantity:
- 1
- Range Of Product:
- Harmony XB4
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
- Mounting Diameter:
- 22 mm
- Mechanical Durability:
- 10000000 cycles
- China Rohs Regulation:
- X
- Resistance To High Pressure Washer:
- 90 Pa 82.5 °C
- Product Certifications:
- CE || UL || CSA
- Product Or Component Type:
- head for push-button
- Device Presentation:
- basic element
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP69K || IP67 || IP69
- Nema Degree Of Protection:
- NEMA 4 UL 508 || NEMA 13 || NEMA 12
- Bezel Material:
- chromium plated metal
- Device Short Name:
- ZB4
- Cad Overall Depth:
- 37 mm
- Electrical Composition Code:
- C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting
- Main Group:
- harsh environment
- Cad Overall Height:
- 18.5 mm
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Operator Additional Information:
- horizontal mounting || vertical mounting
- Marking:
- unmarked
- Shape Of Signaling Unit Head:
- round
- Toxic Heavy Metal Free:
- Yes
- Mercury Free:
- Yes
- Rohs Exemption Information:
- Yes
- Ik Degree Of Protection:
- IK06 IEC 62262
- Operator Profile:
- black flush, unmarked
- Sustainable Offer Status:
- Green Premium product
- Head Type:
- standard
