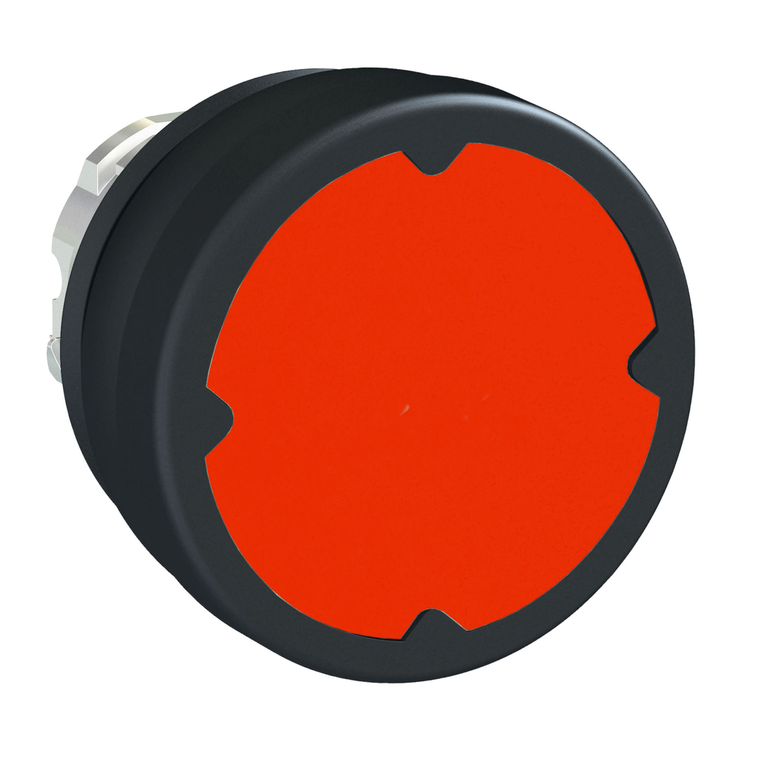

Schneider Electric ZB4BC480 Pushbutton For Harsh Enviroment, Red, Wi
Schneider Electric
$37.26
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony XB4, flush red button head operates with a spring return / impulse mechanism, is used in harsh environment. This button head provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Electrical Shock Protection Class:
- class I IEC 61140
- Head Type:
- standard
- Operator Profile:
- red flush, unmarked
- Group Of Product:
- flush unmarked
- Cap/Operator Or Lens Colour:
- red
- Rohs Exemption Information:
- Yes
- Shape Of Signaling Unit Head:
- round
- China Rohs Regulation:
- X
- Ambient Air Temperature For Storage:
- -40-85 °C
- Device Short Name:
- ZB4
- Marking:
- unmarked
- Ik Degree Of Protection:
- IK06 IEC 62262
- Warranty:
- 18 months
- Device Presentation:
- basic element
- Mercury Free:
- Yes
- Resistance To High Pressure Washer:
- 90 Pa 82.5 °C
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP69K || IP67 || IP69
- Cad Overall Depth:
- 37 mm
- Mounting Diameter:
- 22 mm
- Product Certifications:
- CE || UL || CSA
- Ambient Air Temperature For Operation:
- -40-70 °C
- Bezel Material:
- chromium plated metal
- Circularity Profile:
- ENVEOLI1808008EN
- Operator Additional Information:
- vertical mounting || horizontal mounting
- Main Group:
- harsh environment
- Reach Free Of Svhc:
- Yes
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Nema Degree Of Protection:
- NEMA 4 UL 508 || NEMA 13 || NEMA 12
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Standards:
- CSA C22.2 || UL 508 || IEC 60947-1 || IEC 60947-5-1
- Sustainable Offer Status:
- Green Premium product
- Net Weight:
- 0.036 kg
- Range Of Product:
- Harmony XB4
- Cad Overall Height:
- 18.5 mm
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
- Mechanical Durability:
- 10000000 cycles
- Sale Per Indivisible Quantity:
- 1
- Product Or Component Type:
- head for push-button
- Electrical Composition Code:
- C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Type Of Operator:
- spring return
- Cad Overall Width:
- 37 mm
- Toxic Heavy Metal Free:
- Yes
- Environmental Disclosure:
- ENVPEP1808008EN
