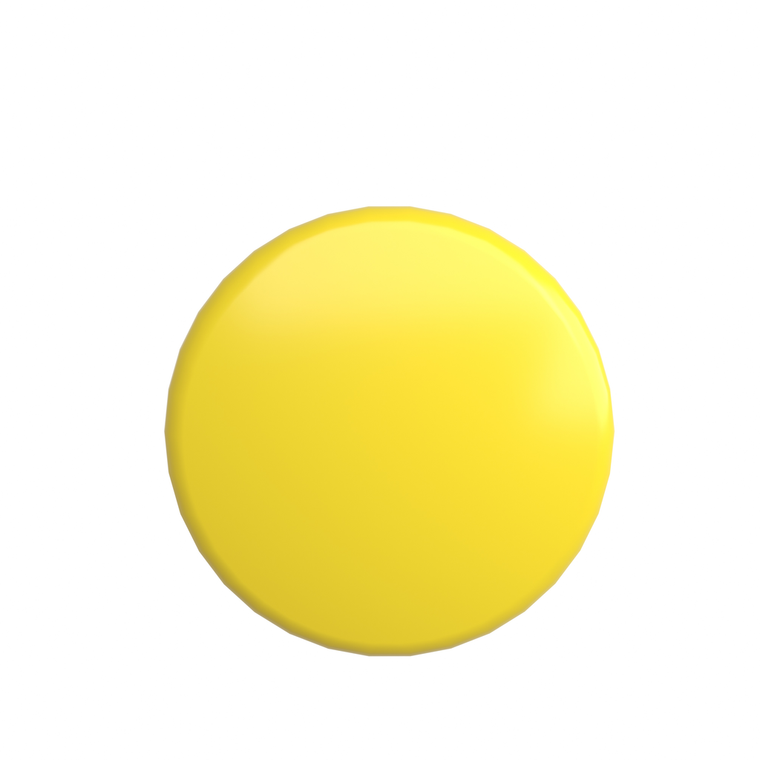

Schneider Electric ZB4BC5 Mushroomm Push But Head
Schneider Electric
$21.61
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony XB4, 40mm mushroom yellow button head operates with a spring return / impulse mechanism. This 40mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Its highly ergonomic mushroom push button shape makes it ideal for use in area where operator wear thick gloves or where users have impaired movements.
- China Rohs Regulation:
- X
- Device Presentation:
- basic element
- Protective Treatment:
- TH
- Cad Overall Depth:
- 52 mm
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Ik Degree Of Protection:
- IK06 IEC 50102
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Cad Overall Width:
- 40 mm
- Product Certifications:
- CSA || LROS (Lloyds register of shipping) || GL || UL Listed || BV || DNV
- Standards:
- UL 508 || EN/IEC 60947-5-5 || CSA C22.2 No 14 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || JIS C8201-5-1 || JIS C8201-1
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Shape Of Signaling Unit Head:
- round
- Warranty:
- 18 months
- Circularity Profile:
- ENVEOLI1808008EN
- Operator Profile:
- yellow mushroom à 40 mm, unmarked
- Bezel Material:
- chromium plated metal
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Mounting Diameter:
- 22 mm
- Mercury Free:
- Yes
- Sale Per Indivisible Quantity:
- 1
- Product Or Component Type:
- head for non-illuminated push-button
- Electrical Composition Code:
- C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting
- Environmental Disclosure:
- ENVPEP1808008EN
- Cad Overall Height:
- 40 mm
- Reach Free Of Svhc:
- Yes
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Toxic Heavy Metal Free:
- Yes
- Head Type:
- standard
- Ambient Air Temperature For Storage:
- -40-70 °C
- Rohs Exemption Information:
- Yes
- Ambient Air Temperature For Operation:
- -40-70 °C
- Overvoltage Category:
- class I IEC 60536
- Sustainable Offer Status:
- Green Premium product
- Type Of Operator:
- spring return
- Device Short Name:
- ZB4
- Range Of Product:
- Harmony XB4
- Mechanical Durability:
- 5000000 cycles
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP69 || IP69K
