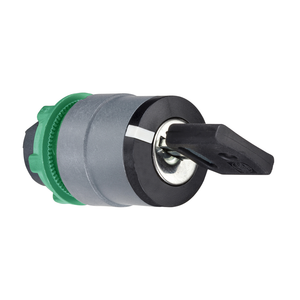

Schneider Electric ZB4BG012 Key Selector Operating He

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB4BG012 Key Selector Operating He

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB4BG012

UPC:

3.38911E+12

MPN:

Condition:

New

Shape Of Signaling Unit Head:

round

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Ambient Air Temperature For Operation:

-40-70 °C

Device Short Name:

ZB4

Circularity Profile:

ENVEOLI1808008EN

Warranty:

18 months

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Range Of Product:

Harmony XB4

Type Of Operator:

stay put

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Mounting Diameter:

22 mm

Cad Overall Width:

29 mm

Head Type:

standard

Mercury Free:

Yes

Product Or Component Type:

head for key selector switch

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Product Certifications:

BV || GL || DNV || LROS (Lloyds register of shipping) || UL Listed || CSA

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 || IP69 || IP69K

Operator Profile:

black key switch

Operator Position Information:

3 positions +/- 45°

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Mechanical Durability:

1000000 cycles

China Rohs Regulation:

X

Device Presentation:

basic element

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Bezel Material:

chromium plated metal

Rohs Exemption Information:

Yes

Electrical Composition Code:

C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting

Protective Treatment:

TH

Standards:

EN/IEC 60947-5-5 || UL 508 || EN/IEC 60947-5-4 || CSA C22.2 No 14 || GB 14048.5 || EN/IEC 60947-5-1 || EN/IEC 60947-1

Sustainable Offer Status:

Green Premium product

Net Weight:

0.098 kg

Type Of Keylock:

key 421E

Key Withdrawal Position:

in any position

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Cad Overall Height:

29 mm

Overvoltage Category:

class I IEC 60536

Sale Per Indivisible Quantity:

1

Cad Overall Depth:

72 mm

Environmental Disclosure:

ENVPEP1808008EN

Ambient Air Temperature For Storage:

-40-70 °C
