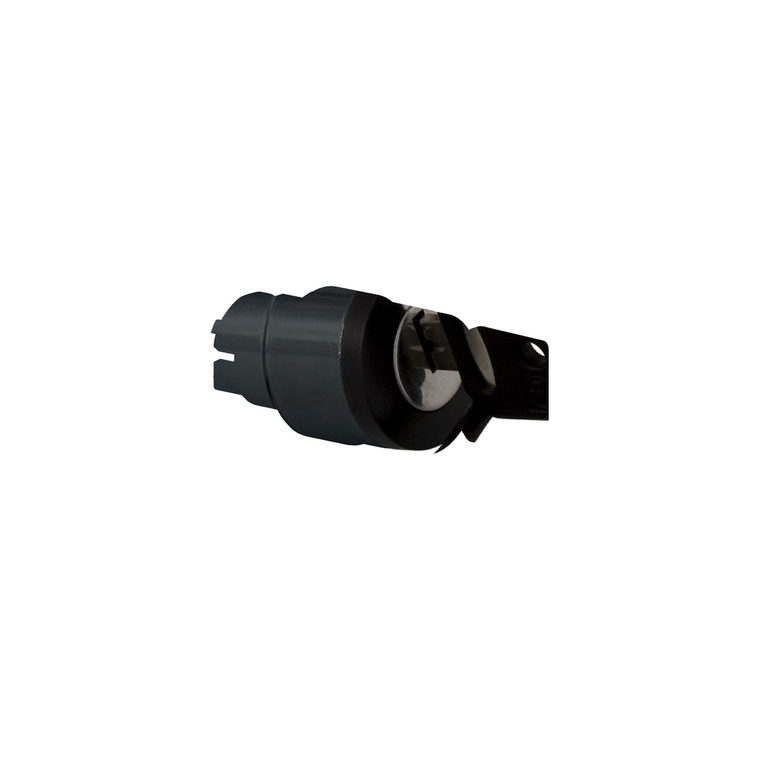

Schneider Electric ZB4BG27 Key Selector Oper. Head

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB4BG27 Key Selector Oper. Head

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB4BG27

UPC:

3.38911E+12

MPN:

Condition:

New

Rohs Exemption Information:

Yes

Protective Treatment:

TH

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Cad Overall Depth:

72 mm

Net Weight:

0.098 kg

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Bezel Material:

black metal

Mounting Diameter:

22 mm

Key Withdrawal Position:

left

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Warranty:

18 months

Cad Overall Width:

29 mm

Sustainable Offer Status:

Green Premium product

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Overvoltage Category:

class I IEC 60536

Product Or Component Type:

head for key selector switch

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 || IP69 || IP69K

Product Certifications:

BV || UL Listed || CSA || DNV || LROS (Lloyds register of shipping) || GL

Ambient Air Temperature For Storage:

-40-70 °C

Shape Of Signaling Unit Head:

round

Type Of Keylock:

key 455

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Head Type:

standard

China Rohs Regulation:

X

Ambient Air Temperature For Operation:

-40-70 °C

Device Short Name:

ZB4

Operator Position Information:

2 positions 90°

Type Of Operator:

stay put

Mercury Free:

Yes

Environmental Disclosure:

ENVPEP1808008EN

Circularity Profile:

ENVEOLI1808008EN

Cad Overall Height:

29 mm

Range Of Product:

Harmony XB4

Device Presentation:

basic element

Standards:

GB 14048.5 || EN/IEC 60947-5-5 || UL 508 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-1 || EN/IEC 60947-5-4

Operator Profile:

black key switch

Mechanical Durability:

1000000 cycles

Electrical Composition Code:

C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1

Sale Per Indivisible Quantity:

1

Brochure:

View

Datasheet:

View
