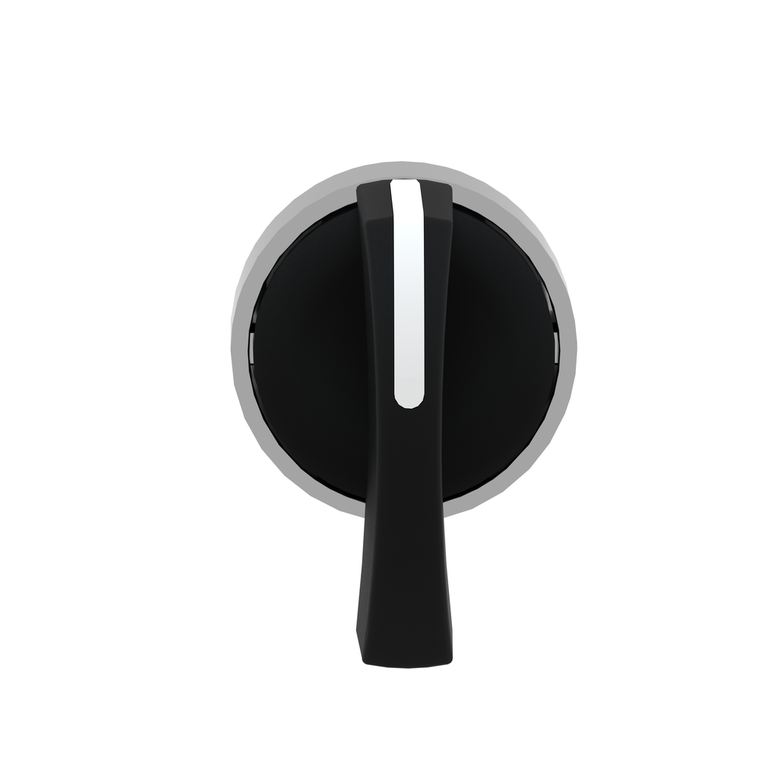

Schneider Electric ZB4BJ3 Selector Operating Head
Schneider Electric
$17.64
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony XB4, black head with long handle has 3 positions, operates with stay-put mechanism. This switch head with long handle provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
- Electrical Composition Code:
- C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Environmental Disclosure:
- ENVPEP1808008EN
- Ambient Air Temperature For Storage:
- -40-70 °C
- Operator Position Information:
- 3 positions +/- 45°
- Product Certifications:
- LROS (Lloyds register of shipping) || GL || CSA || DNV || BV || UL Listed
- Ip Degree Of Protection:
- IP67 IEC 60529 || IP69 || IP69K
- Device Presentation:
- basic element
- Head Type:
- standard
- Range Of Product:
- Harmony XB4
- Cad Overall Depth:
- 44 mm
- Reach Free Of Svhc:
- Yes
- Type Of Operator:
- stay put
- China Rohs Regulation:
- X
- Sustainable Offer Status:
- Green Premium product
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Cad Overall Width:
- 29 mm
- Operator Profile:
- black long handle
- Standards:
- IEC 60947-5-1 || UL 508 || IEC 60947-5-5 || CSA C22.2 No 14 || IEC 60947-1 || IEC 60947-5-4 || JIS C8201-5-1 || JIS C8201-1
- Protective Treatment:
- TH
- Mounting Diameter:
- 22 mm
- Ik Degree Of Protection:
- IK06 IEC 50102
- Sale Per Indivisible Quantity:
- 1
- Cad Overall Height:
- 38 mm
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Overvoltage Category:
- class I IEC 60536
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Warranty:
- 18 months
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Product Or Component Type:
- head for selector switch
- Shape Of Signaling Unit Head:
- round
- Net Weight:
- 0.04 kg
- Operator Additional Information:
- non padlockable
- Circularity Profile:
- ENVEOLI1808008EN
- Device Short Name:
- ZB4
- Toxic Heavy Metal Free:
- Yes
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Ambient Air Temperature For Operation:
- -40-70 °C
- Mechanical Durability:
- 1000000 cycles
- Mercury Free:
- Yes
- Bezel Material:
- chromium plated metal
- Rohs Exemption Information:
- Yes
