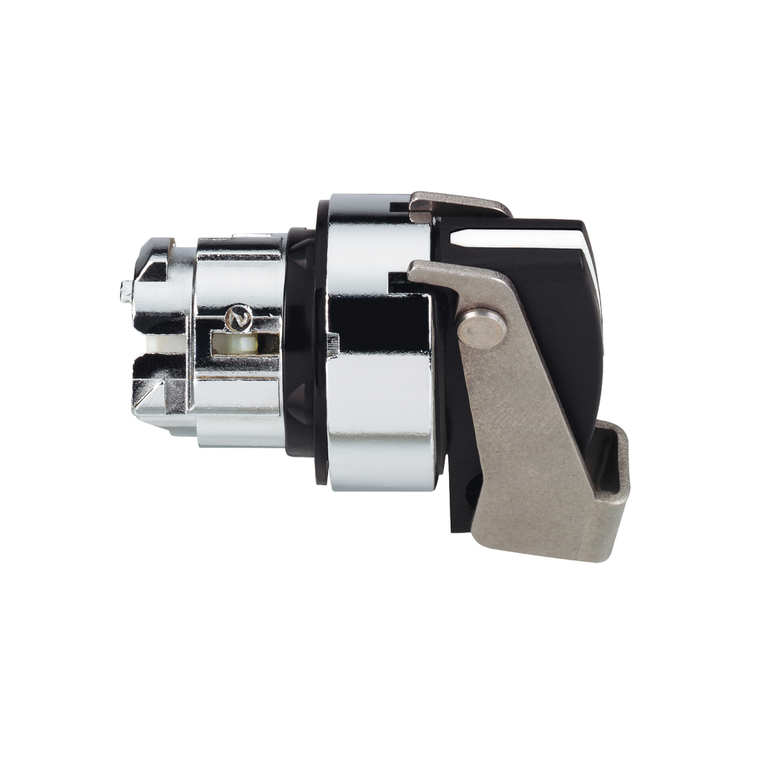

Schneider Electric ZB4BJ393 Padlockable Selector Head
Schneider Electric
$79.38
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony XB4, black selector switch head with padlockable long handle has 3 positions, operates with stay-put mechanism with locking on center position. This switch head provides an ergonomic interface for controlling your machines. It is supplied with padlockable long handle to provide a secure manner for your authorized staff to make change in an operation. It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
- Head Type:
- standard
- Standards:
- UL 508 || CSA C22.2 No 14 || IEC 60947-5-1 || IEC 60947-1 || IEC 60947-5-4 || JIS C8201-5-1 || IEC 60947-5-5 || JIS C8201-1
- Ip Degree Of Protection:
- IP67 IEC 60529 || IP69 || IP69K
- Cad Overall Height:
- 38 mm
- Rohs Exemption Information:
- Yes
- Operator Position Information:
- 3 positions +/- 45°
- China Rohs Regulation:
- X
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Product Certifications:
- GL || DNV || BV || CSA || LROS (Lloyds register of shipping) || UL Listed
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Device Presentation:
- basic element
- Cad Overall Depth:
- 50 mm
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Type Of Operator:
- stay put
- Bezel Material:
- chromium plated metal
- Range Of Product:
- Harmony XB4
- Warranty:
- 18 months
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Toxic Heavy Metal Free:
- Yes
- Sustainable Offer Status:
- Green Premium product
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Protective Treatment:
- TH
- Overvoltage Category:
- class I IEC 60536
- Environmental Disclosure:
- ENVPEP1808008EN
- Electrical Composition Code:
- C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting
- Operator Profile:
- black long handle
- Operator Additional Information:
- padlockable
- Product Or Component Type:
- head for selector switch
- Sale Per Indivisible Quantity:
- 1
- Shape Of Signaling Unit Head:
- round
- Cad Overall Width:
- 29 mm
- Device Short Name:
- ZB4
- Locking Position:
- in the center
- Net Weight:
- 0.048 kg
- Ik Degree Of Protection:
- IK06 IEC 50102
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Mercury Free:
- Yes
- Ambient Air Temperature For Operation:
- -40-70 °C
- Ambient Air Temperature For Storage:
- -40-70 °C
- Circularity Profile:
- ENVEOLI1808008EN
- Reach Free Of Svhc:
- Yes
- Mounting Diameter:
- 22 mm
- Mechanical Durability:
- 1000000 cycles
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
