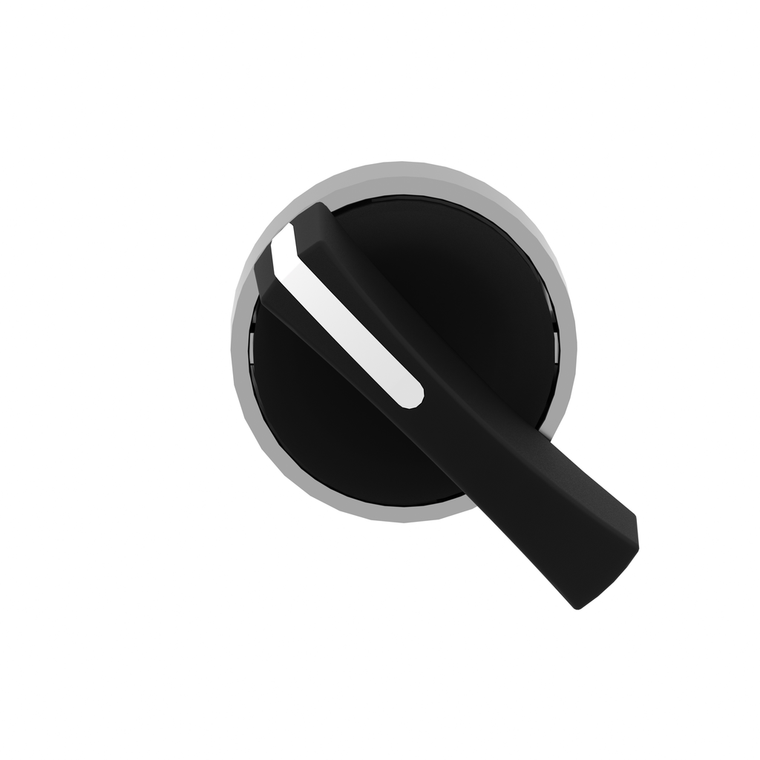

Schneider Electric ZB4BJ4 Selector Operating Head
Schneider Electric
$21.61
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony XB4, black head with long handle has 2 positions, operates with spring return from right to left mechanism. This switch head with long handle provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
- Type Of Operator:
- right to left spring return
- Cad Overall Depth:
- 44 mm
- Mechanical Durability:
- 1000000 cycles
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Protective Treatment:
- TH
- Net Weight:
- 0.045 kg
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Rohs Exemption Information:
- Yes
- Cad Overall Height:
- 38 mm
- Device Presentation:
- basic element
- Mounting Diameter:
- 22 mm
- Operator Additional Information:
- non padlockable
- Sustainable Offer Status:
- Green Premium product
- Operator Position Information:
- 2 positions 90°
- Standards:
- EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-1 || EN/IEC 60947-5-5 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-5-1 || JIS C8201-1
- Product Certifications:
- BV || CSA || GL || DNV || UL Listed || LROS (Lloyds register of shipping)
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Product Or Component Type:
- head for selector switch
- Operator Profile:
- black long handle
- Mercury Free:
- Yes
- Environmental Disclosure:
- ENVPEP1808008EN
- Ik Degree Of Protection:
- IK06 IEC 50102
- Overvoltage Category:
- class I IEC 60536
- Shape Of Signaling Unit Head:
- round
- Sale Per Indivisible Quantity:
- 1
- Electrical Composition Code:
- C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1
- Bezel Material:
- chromium plated metal
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Warranty:
- 18 months
- Cad Overall Width:
- 29 mm
- Range Of Product:
- Harmony XB4
- Ip Degree Of Protection:
- IP67 IEC 60529 || IP69 || IP69K
- Reach Free Of Svhc:
- Yes
- Circularity Profile:
- ENVEOLI1808008EN
- Ambient Air Temperature For Storage:
- -40-70 °C
- Device Short Name:
- ZB4
- Head Type:
- standard
- China Rohs Regulation:
- X
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Ambient Air Temperature For Operation:
- -40-70 °C
- Toxic Heavy Metal Free:
- Yes
