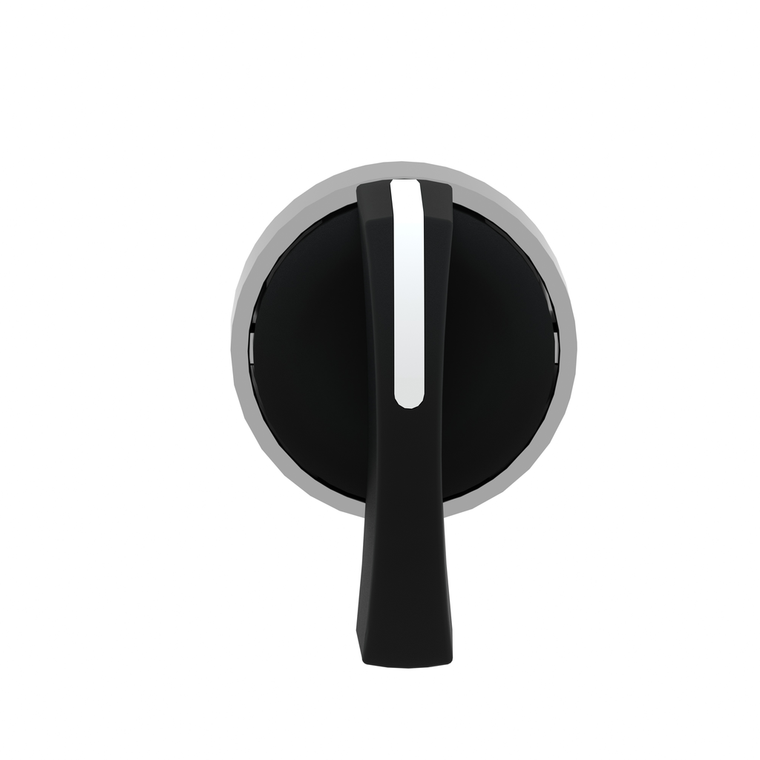

Schneider Electric ZB4BJ7 Selector Operating Head
Schneider Electric
$21.61
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony XB4, black head with long handle has 3 positions, operates with spring return from left to center mechanism. This switch head with long handle provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
- Cad Overall Width:
- 29 mm
- Rohs Exemption Information:
- Yes
- China Rohs Regulation:
- X
- Sustainable Offer Status:
- Green Premium product
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Protective Treatment:
- TH
- Ambient Air Temperature For Operation:
- -40-70 °C
- Ik Degree Of Protection:
- IK06 IEC 50102
- Environmental Disclosure:
- ENVPEP1808008EN
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Bezel Material:
- chromium plated metal
- Product Certifications:
- UL Listed || CSA || LROS (Lloyds register of shipping) || DNV || GL || BV
- Product Or Component Type:
- head for selector switch
- Device Presentation:
- basic element
- Mercury Free:
- Yes
- Cad Overall Depth:
- 44 mm
- Standards:
- JIS C8201-5-1 || IEC 60947-5-4 || IEC 60947-5-5 || UL 508 || IEC 60947-1 || CSA C22.2 No 14 || IEC 60947-5-1 || JIS C8201-1
- Circularity Profile:
- ENVEOLI1808008EN
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Operator Position Information:
- 3 positions +/- 45°
- Sale Per Indivisible Quantity:
- 1
- Range Of Product:
- Harmony XB4
- Ambient Air Temperature For Storage:
- -40-70 °C
- Mounting Diameter:
- 22 mm
- Shape Of Signaling Unit Head:
- round
- Type Of Operator:
- left to centre spring return
- Operator Profile:
- black long handle
- Electrical Composition Code:
- C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting
- Device Short Name:
- ZB4
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Warranty:
- 18 months
- Toxic Heavy Metal Free:
- Yes
- Head Type:
- standard
- Reach Free Of Svhc:
- Yes
- Net Weight:
- 0.04 kg
- Overvoltage Category:
- class I IEC 60536
- Operator Additional Information:
- non padlockable
- Ip Degree Of Protection:
- IP67 IEC 60529 || IP69 || IP69K
- Cad Overall Height:
- 38 mm
- Mechanical Durability:
- 1000000 cycles
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
