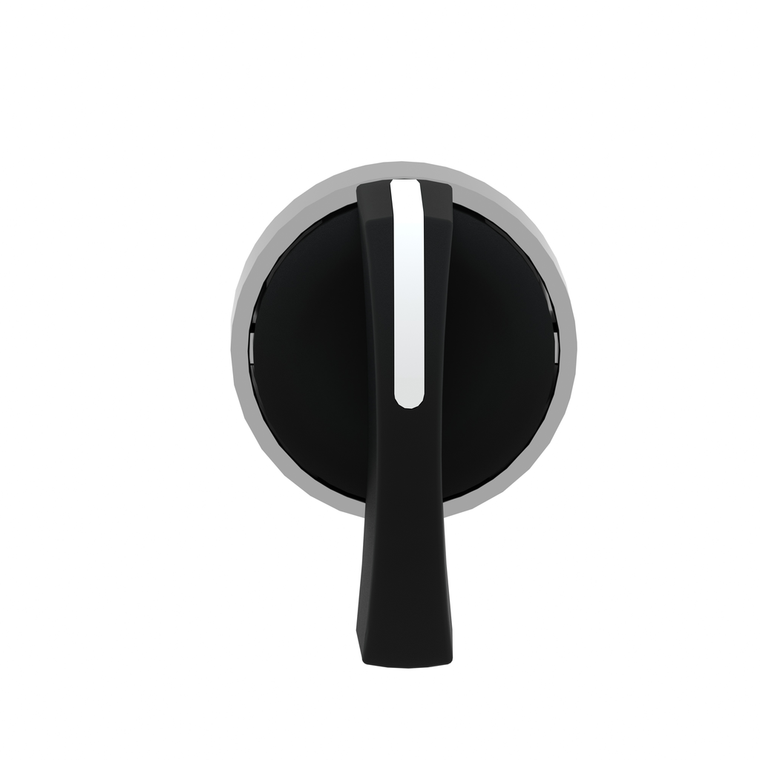

Schneider Electric ZB4BJ8 Selector Operating Head
Schneider Electric
$21.61
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony XB4, black head with long handle has 3 positions, operates with spring return from right to center mechanism. This switch head with long handle provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
- Cad Overall Width:
- 29 mm
- Toxic Heavy Metal Free:
- Yes
- Warranty:
- 18 months
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Circularity Profile:
- ENVEOLI1808008EN
- Standards:
- IEC 60947-1 || JIS C8201-5-1 || IEC 60947-5-4 || IEC 60947-5-5 || UL 508 || CSA C22.2 No 14 || IEC 60947-5-1 || JIS C8201-1
- Electrical Composition Code:
- C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting
- Head Type:
- standard
- Range Of Product:
- Harmony XB4
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Ambient Air Temperature For Storage:
- -40-70 °C
- Ambient Air Temperature For Operation:
- -40-70 °C
- Shape Of Signaling Unit Head:
- round
- Ik Degree Of Protection:
- IK06 IEC 50102
- Bezel Material:
- chromium plated metal
- Sale Per Indivisible Quantity:
- 1
- Operator Position Information:
- 3 positions +/- 45°
- Product Certifications:
- DNV || GL || LROS (Lloyds register of shipping) || UL Listed || CSA || BV
- Type Of Operator:
- right to centre spring return
- Device Short Name:
- ZB4
- Mounting Diameter:
- 22 mm
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Overvoltage Category:
- class I IEC 60536
- Operator Profile:
- black long handle
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Net Weight:
- 0.04 kg
- Rohs Exemption Information:
- Yes
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Sustainable Offer Status:
- Green Premium product
- Cad Overall Height:
- 38 mm
- Protective Treatment:
- TH
- Cad Overall Depth:
- 44 mm
- China Rohs Regulation:
- X
- Product Or Component Type:
- head for selector switch
- Operator Additional Information:
- non padlockable
- Mechanical Durability:
- 1000000 cycles
- Environmental Disclosure:
- ENVPEP1808008EN
- Device Presentation:
- basic element
- Ip Degree Of Protection:
- IP67 IEC 60529 || IP69 || IP69K
- Mercury Free:
- Yes
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Reach Free Of Svhc:
- Yes
