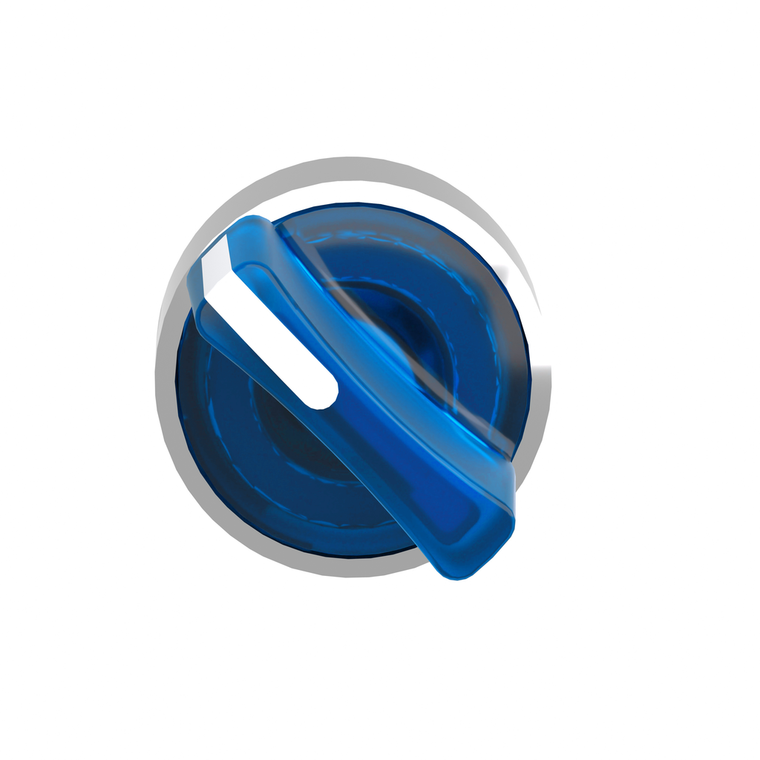

Schneider Electric ZB4BK1263 Selector Ill. Pushbotton
Schneider Electric
$25.73
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony XB4, illuminated blue selector switch head for universal LED with standard handle has 2 positions, operates with stay-put mechanism. This illuminated switch head for universal LED provides an ergonomic interface for controlling your machines. It is supplied with standard handle and can easily be installed on compatible selector switch units. It provides a clear help in setting your machines in various operating modes, even in darker control rooms, and with a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
- Standards:
- UL 508 || JIS C8201-5-1 || EN/IEC 60947-1 || CSA C22.2 No 14 || EN/IEC 60947-5-5 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || JIS C8201-1
- Rohs Exemption Information:
- Yes
- Range Of Product:
- Harmony XB4
- Ambient Air Temperature For Operation:
- -40-70 °C
- Device Presentation:
- basic element
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- China Rohs Regulation:
- X
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Product Compatibility:
- universal LED
- Sustainable Offer Status:
- Green Premium product
- Cad Overall Depth:
- 43 mm
- Head Type:
- standard
- Device Short Name:
- ZB4
- Protective Treatment:
- TH
- Sale Per Indivisible Quantity:
- 1
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Product Certifications:
- LROS (Lloyds register of shipping) || UL Listed || DNV || BV || GL || CSA
- Mechanical Durability:
- 1000000 cycles
- Ik Degree Of Protection:
- IK04 IEC 50102
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Warranty:
- 18 months
- Reach Free Of Svhc:
- Yes
- Net Weight:
- 0.036 kg
- Circularity Profile:
- ENVEOLI1808008EN
- Toxic Heavy Metal Free:
- Yes
- Product Or Component Type:
- head for illuminated selector switch
- Ambient Air Temperature For Storage:
- -40-70 °C
- Operator Position Information:
- 2 positions 90°
- Shape Of Signaling Unit Head:
- round
- Mounting Diameter:
- 22 mm
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Electrical Composition Code:
- M3 4 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || M4 4 single and double front mounting integral LED
- Cad Overall Width:
- 29 mm
- Type Of Operator:
- stay put
- Operator Profile:
- blue standard handle
- Mercury Free:
- Yes
- Bezel Material:
- chromium plated metal
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Cad Overall Height:
- 29 mm
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Environmental Disclosure:
- ENVPEP1808008EN
- Overvoltage Category:
- class I IEC 60536
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
