Schneider Electric ZB4BK15337 Selector Ill. Pushbotton

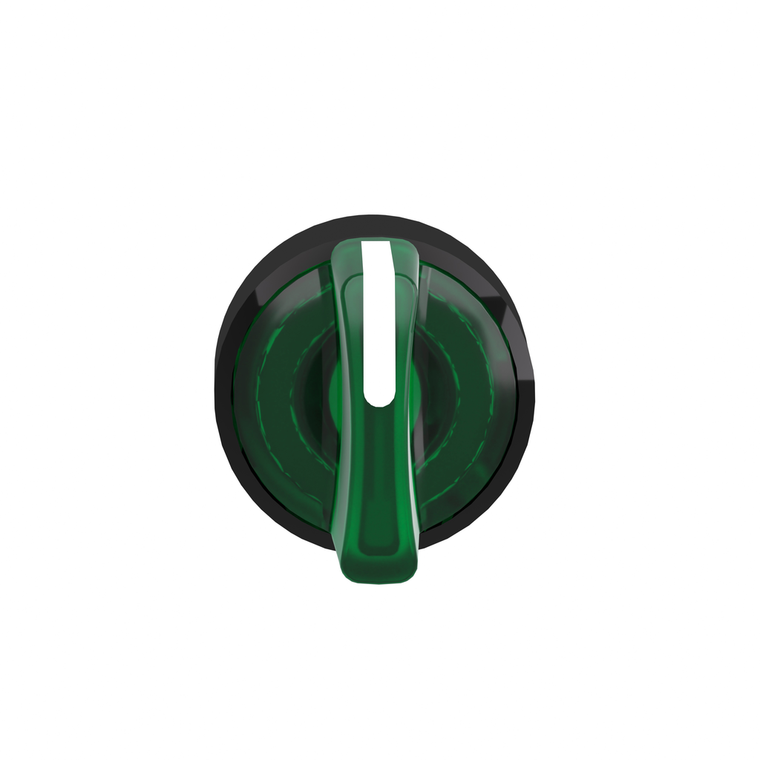

This Harmony XB4, illuminated green selector switch head for universal LED with standard handle has 3 positions, operates with spring return to center mechanism. This illuminated switch head for universal LED provides an ergonomic interface for controlling your machines. It is supplied with standard handle and can easily be installed on compatible selector switch units. It provides a clear help in setting your machines in various operating modes, even in darker control rooms, and with a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
- Product Compatibility:
- universal LED
- Head Type:
- standard
- Circularity Profile:
- ENVEOLI1808008EN
- Cad Overall Height:
- 29 mm
- Standards:
- EN/IEC 60947-1 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || UL 508 || EN/IEC 60947-5-5 || CSA C22.2 No 14 || JIS C8201-5-1 || JIS C8201-1
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Ambient Air Temperature For Operation:
- -40-70 °C
- Operator Profile:
- green standard handle
- Warranty:
- 18 months
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Ik Degree Of Protection:
- IK04 IEC 50102
- Device Short Name:
- ZB4
- Ambient Air Temperature For Storage:
- -40-70 °C
- Mercury Free:
- Yes
- Environmental Disclosure:
- ENVPEP1808008EN
- Electrical Composition Code:
- M3 4 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || M4 4 single and double front mounting integral LED
- Mechanical Durability:
- 500000 cycles
- Range Of Product:
- Harmony XB4
- Mounting Diameter:
- 22 mm
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Sustainable Offer Status:
- Green Premium product
- Reach Free Of Svhc:
- Yes
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Product Certifications:
- UL Listed || BV || DNV || LROS (Lloyds register of shipping) || CSA || GL
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Protective Treatment:
- TH
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Toxic Heavy Metal Free:
- Yes
- Rohs Exemption Information:
- Yes
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Operator Position Information:
- 3 positions +/- 45°
- Sale Per Indivisible Quantity:
- 1
- Net Weight:
- 0.036 kg
- Bezel Material:
- black metal
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Device Presentation:
- basic element
- China Rohs Regulation:
- X
- Shape Of Signaling Unit Head:
- round
- Overvoltage Category:
- class I IEC 60536
- Product Or Component Type:
- head for illuminated selector switch
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Cad Overall Depth:
- 43 mm
- Type Of Operator:
- to centre spring return
- Cad Overall Width:
- 29 mm
