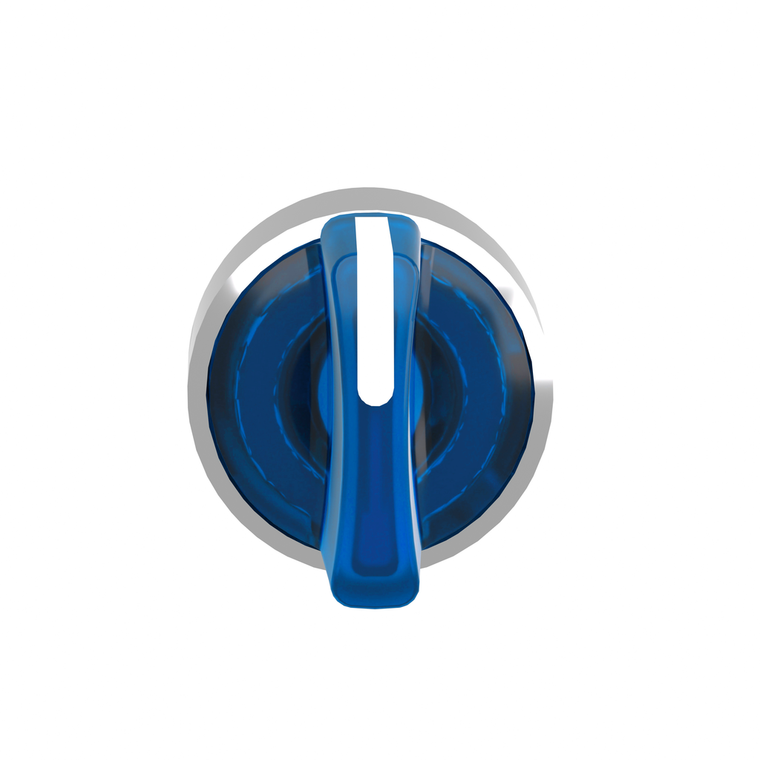

Schneider Electric ZB4BK1763 Selector Ill. Pushbotton
Schneider Electric
$56.23
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony XB4, illuminated blue selector switch head for universal LED with standard handle has 3 positions, operates with spring return from left to center mechanism. This illuminated switch head for universal LED provides an ergonomic interface for controlling your machines. It is supplied with standard handle and can easily be installed on compatible selector switch units. It provides a clear help in setting your machines in various operating modes, even in darker control rooms, and with a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
- Product Compatibility:
- universal LED
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Electrical Composition Code:
- M3 4 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || M4 4 single and double front mounting integral LED
- Type Of Operator:
- left to centre spring return
- Device Presentation:
- basic element
- Device Short Name:
- ZB4
- Rohs Exemption Information:
- Yes
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Ambient Air Temperature For Operation:
- -40-70 °C
- Warranty:
- 18 months
- Mounting Diameter:
- 22 mm
- Reach Free Of Svhc:
- Yes
- Toxic Heavy Metal Free:
- Yes
- Mechanical Durability:
- 500000 cycles
- Shape Of Signaling Unit Head:
- round
- Operator Position Information:
- 3 positions +/- 45°
- Product Certifications:
- GL || DNV || LROS (Lloyds register of shipping) || CSA || UL Listed || BV
- Environmental Disclosure:
- ENVPEP1808008EN
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Sale Per Indivisible Quantity:
- 1
- Cad Overall Depth:
- 43 mm
- Bezel Material:
- chromium plated metal
- Product Or Component Type:
- head for illuminated selector switch
- Cad Overall Width:
- 29 mm
- Range Of Product:
- Harmony XB4
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Operator Profile:
- blue standard handle
- Ambient Air Temperature For Storage:
- -40-70 °C
- Protective Treatment:
- TH
- Standards:
- UL 508 || EN/IEC 60947-5-5 || JIS C8201-5-1 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1
- Head Type:
- standard
- Mercury Free:
- Yes
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Sustainable Offer Status:
- Green Premium product
- Net Weight:
- 0.036 kg
- Overvoltage Category:
- class I IEC 60536
- Ik Degree Of Protection:
- IK04 IEC 50102
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- China Rohs Regulation:
- X
- Circularity Profile:
- ENVEOLI1808008EN
- Cad Overall Height:
- 29 mm
