Schneider Electric ZB4BL73417 Black Bezel Double Headed Pushbuttons

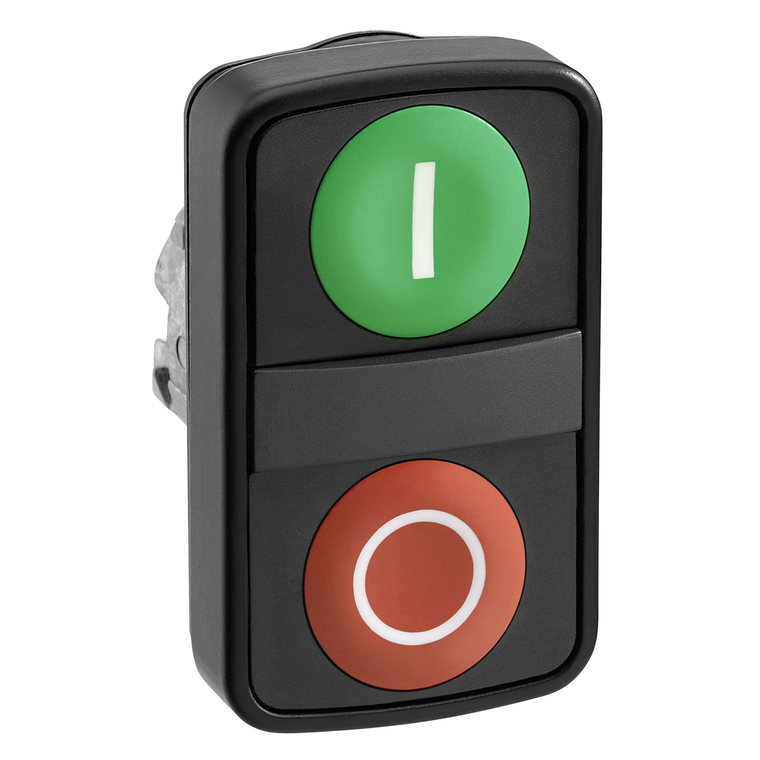

This Harmony XB4, double head has 1 green and 1 red button, operates with a spring return / impulse mechanism. It is marked with "I" and "O"symbols. This double head provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear colors and by touch due to flush and projecting elements, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. it is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Standards:
- CSA C22.2 No 14 || JIS C8201-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-1 || UL 508 || EN/IEC 60947-5-4 || EN/IEC 60947-5-5 || JIS C8201-1
- Electrical Shock Protection Class:
- class I IEC 60536
- Net Weight:
- 0.056 kg
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Mounting Diameter:
- 22 mm
- Product Certifications:
- BV || CSA || LROS (Lloyds register of shipping) || DNV || UL Listed || GL
- Mercury Free:
- Yes
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Operators Description:
- green ''I'' - red ''O''
- Rohs Exemption Information:
- Yes
- Bezel Material:
- black metal
- Sale Per Indivisible Quantity:
- 1
- Warranty:
- 18 months
- Mechanical Durability:
- 1000000 cycles
- Toxic Heavy Metal Free:
- Yes
- Ambient Air Temperature For Operation:
- -40-70 °C
- Range Of Product:
- Harmony XB4
- Ambient Air Temperature For Storage:
- -40-70 °C
- Ik Degree Of Protection:
- IK03 IEC 50102
- Environmental Disclosure:
- ENVPEP1808008EN
- Circularity Profile:
- ENVEOLI1808008EN
- Product Or Component Type:
- head for double-headed push-button
- Head Type:
- standard
- Electrical Composition Code:
- C3 6 single front mounting || C4 6 single and double front mounting || C14 2 single front mounting
- China Rohs Regulation:
- X
- Type Of Operator:
- spring return
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Operator Profile:
- 1 flush - 1 projecting push-buttons
- Colour Of Marking:
- black marking when white caps || white marking when green, red or black caps
- Device Presentation:
- basic element
- Shape Of Signaling Unit Head:
- rectangular
- Operator Profile:
- green flush, I white) || red projecting, O white)
- Device Short Name:
- ZB4
- Ip Degree Of Protection:
- IP69 IEC 60529 || IP66 IEC 60529 || IP69K
- Reach Free Of Svhc:
- Yes
- Sustainable Offer Status:
- Green Premium product
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
