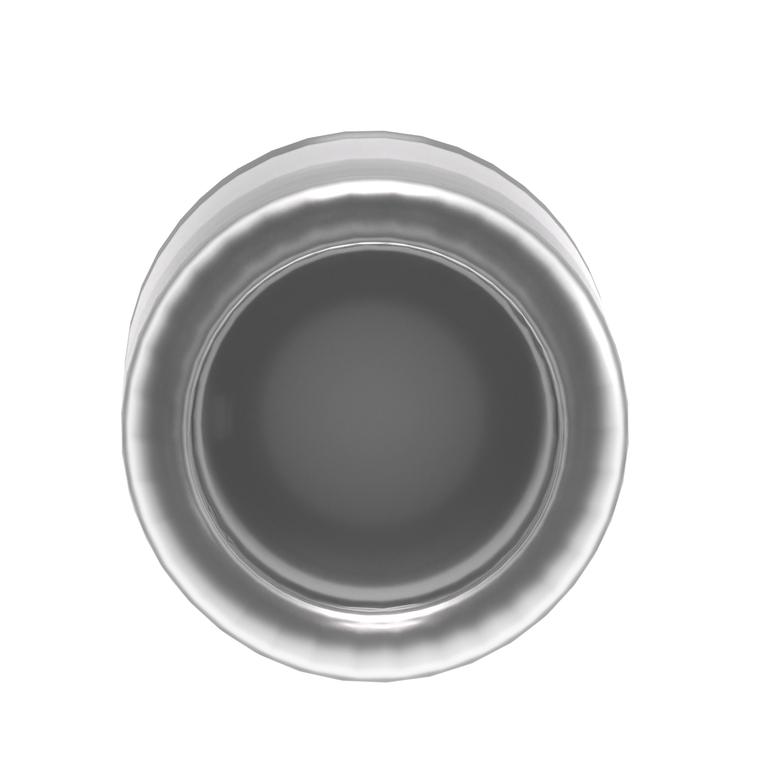

Schneider Electric ZB4BP18 Pushbutton Operator Head
Schneider Electric
$21.32
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony XB4, flush white button head with clear silicone membrane booted operates with a spring return / impulse mechanism. This clear silicone booted button head provides a simple solution to comply with hygiene requirement in food, beverage industries as well as healthcare and pharmaceuticals. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. The clear boot prevents growth of bacteria in joints and gaps, it makes this product ideal for high hygiene environments.
- Ambient Air Temperature For Operation:
- -40-70 °C
- Environmental Disclosure:
- ENVPEP1808008EN
- Operator Profile:
- white flush, unmarked
- Sale Per Indivisible Quantity:
- 1
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Toxic Heavy Metal Free:
- Yes
- Warranty:
- 18 months
- Cad Overall Depth:
- 37 mm
- Ik Degree Of Protection:
- IK06 IEC 50102
- Mounting Diameter:
- 22 mm
- Cad Overall Width:
- 30 mm
- Overvoltage Category:
- class I IEC 60536
- Device Presentation:
- basic element
- Head Type:
- standard
- Product Or Component Type:
- head for non-illuminated push-button
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Reach Free Of Svhc:
- Yes
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Type Of Operator:
- spring return
- Range Of Product:
- Harmony XB4
- Ambient Air Temperature For Storage:
- -40-70 °C
- Shape Of Signaling Unit Head:
- round
- Device Short Name:
- ZB4
- Standards:
- EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-5-5 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || JIS C8201-5-1 || JIS C8201-1
- Mercury Free:
- Yes
- Circularity Profile:
- ENVEOLI1808008EN
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Protective Treatment:
- TH
- Sustainable Offer Status:
- Green Premium product
- Electrical Composition Code:
- C3 6 single front mounting || C4 6 single and double front mounting || C14 2 single front mounting
- Mechanical Durability:
- 10000000 cycles
- Cad Overall Height:
- 30 mm
- Operator Additional Information:
- clear boot for insertion of protected legend within head
- Rohs Exemption Information:
- Yes
- China Rohs Regulation:
- X
- Product Certifications:
- BV || GL || LROS (Lloyds register of shipping) || CSA || UL Listed || DNV
- Product Compatibility:
- not compatible with legend holder
- Bezel Material:
- chromium plated metal
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
