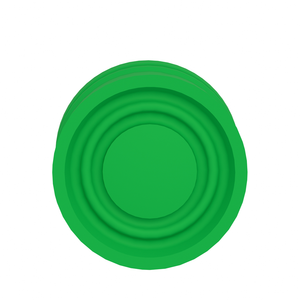

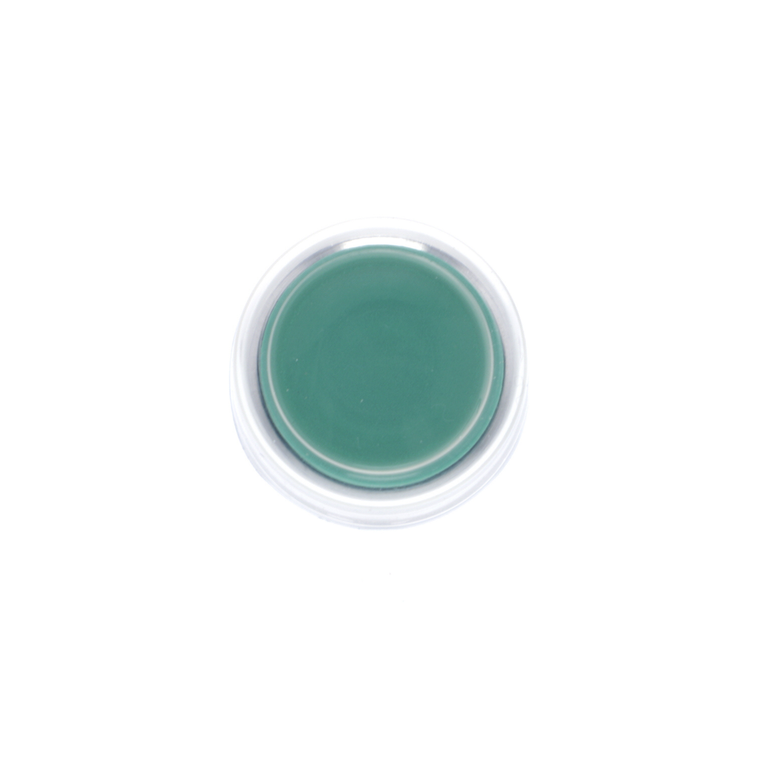

Schneider Electric ZB4BP3 Pushbutton Operator Head
Schneider Electric
$18.96
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony XB4, clear silicone booted green button head operates with a spring return mechanism. This silicone booted button head provides a simple solution to comply with hygiene requirement in food, beverage industries as well as healthcare and pharmaceuticals. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
- Toxic Heavy Metal Free:
- Yes
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- China Rohs Regulation:
- X
- Overvoltage Category:
- class I IEC 60536
- Device Short Name:
- ZB4
- Operator Profile:
- green projecting, unmarked
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Product Certifications:
- CSA || BV || LROS (Lloyds register of shipping) || GL || DNV || UL Listed
- Rohs Exemption Information:
- Yes
- Circularity Profile:
- ENVEOLI1808008EN
- Sustainable Offer Status:
- Green Premium product
- Product Or Component Type:
- head for non-illuminated push-button
- Ik Degree Of Protection:
- IK06 IEC 50102
- Warranty:
- 18 months
- Product Compatibility:
- not compatible with legend holder
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Mechanical Durability:
- 10000000 cycles
- Mercury Free:
- Yes
- Bezel Material:
- chromium plated metal
- Type Of Operator:
- spring return
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67
- Operator Additional Information:
- clear boot
- Cad Overall Width:
- 30 mm
- Environmental Disclosure:
- ENVPEP1808008EN
- Ambient Air Temperature For Operation:
- -40-70 °C
- Shape Of Signaling Unit Head:
- round
- Device Presentation:
- basic element
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Electrical Composition Code:
- C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting
- Mounting Diameter:
- 22 mm
- Cad Overall Height:
- 30 mm
- Head Type:
- standard
- Ambient Air Temperature For Storage:
- -40-70 °C
- Sale Per Indivisible Quantity:
- 1
- Reach Free Of Svhc:
- Yes
- Cad Overall Depth:
- 35 mm
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Protective Treatment:
- TH
- Standards:
- IEC 60947-5-5 || IEC 60947-5-4 || IEC 60947-1 || JIS C8201-5-1 || UL 508 || IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1
- Range Of Product:
- Harmony XB4
