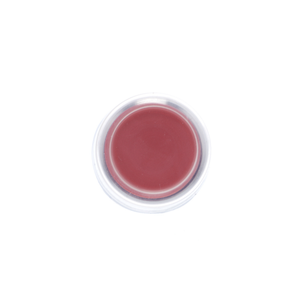

Schneider Electric ZB4BP4S Pushbutton Operator Head
Schneider Electric
$18.96
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony XB4, flush red button head with colored silicone boot operates with a spring return / impulse mechanism. This colored silicone booted button head provides an ergonomic interface for controlling your machine and a simple solution to prevent dirt and other contaminants. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. The clear boot prevents growth of bacteria in joints and gaps, it makes this product ideal for high hygiene environments.
- Product Certifications:
- GL || DNV || BV || CSA || UL Listed || LROS (Lloyds register of shipping)
- Shape Of Signaling Unit Head:
- round
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Electrical Composition Code:
- C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting
- Environmental Disclosure:
- ENVPEP1808008EN
- Mounting Diameter:
- 22 mm
- Cad Overall Width:
- 30 mm
- Type Of Operator:
- spring return
- Sale Per Indivisible Quantity:
- 1
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Operator Profile:
- red flush, unmarked
- Sustainable Offer Status:
- Green Premium product
- Mercury Free:
- Yes
- Ambient Air Temperature For Operation:
- -40-70 °C
- Reach Free Of Svhc:
- Yes
- Operator Additional Information:
- coloured boot
- Device Short Name:
- ZB4
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Warranty:
- 18 months
- China Rohs Regulation:
- X
- Range Of Product:
- Harmony XB4
- Device Presentation:
- basic element
- Toxic Heavy Metal Free:
- Yes
- Head Type:
- standard
- Mechanical Durability:
- 10000000 cycles
- Ik Degree Of Protection:
- IK06 IEC 50102
- Protective Treatment:
- TH
- Cad Overall Depth:
- 33 mm
- Circularity Profile:
- ENVEOLI1808008EN
- Standards:
- IEC 60947-5-4 || UL 508 || CSA C22.2 No 14 || IEC 60947-1 || IEC 60947-5-5 || IEC 60947-5-1 || JIS C8201-5-1 || JIS C8201-1
- Cad Overall Height:
- 30 mm
- Product Or Component Type:
- head for non-illuminated push-button
- Product Compatibility:
- legend holder
- Overvoltage Category:
- class I IEC 60536
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Ambient Air Temperature For Storage:
- -40-70 °C
- Bezel Material:
- chromium plated metal
- Net Weight:
- 0.029 kg
- Rohs Exemption Information:
- Yes
