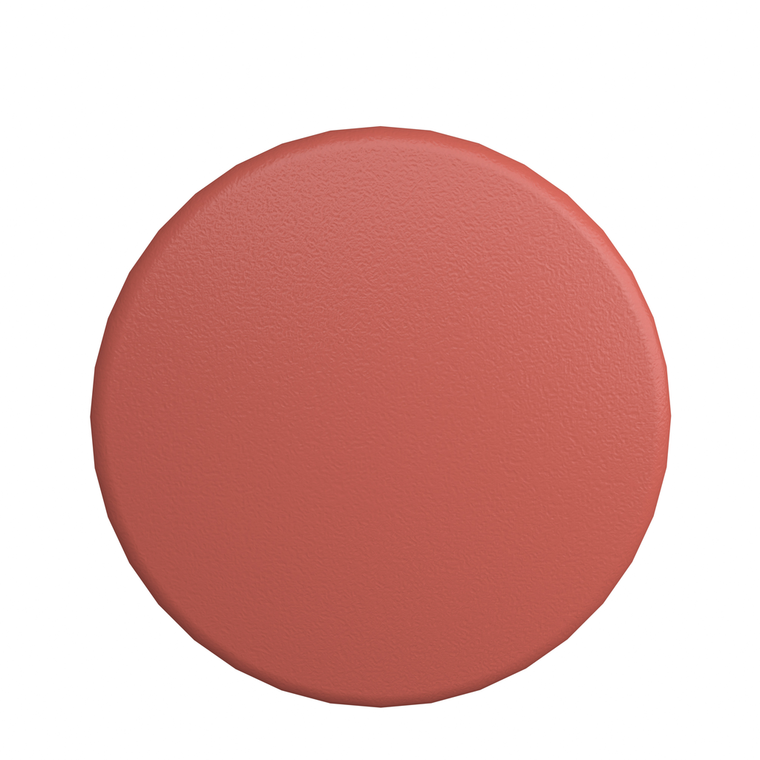

Schneider Electric ZB4BR4 Mushroomm Push But Head
Schneider Electric
$25.73
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony XB4, 60mm mushroom red button head operates with a spring return / impulse mechanism. This 60mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent 60mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Its highly ergonomic mushroom push button shape makes it ideal for use in area where operator wear thick gloves or where users have impaired movements.
- Environmental Disclosure:
- ENVPEP1808008EN
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Operator Profile:
- red mushroom à 60 mm, unmarked
- Cad Overall Depth:
- 52 mm
- Rohs Exemption Information:
- Yes
- Overvoltage Category:
- class I IEC 60536
- China Rohs Regulation:
- X
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Mechanical Durability:
- 5000000 cycles
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Reach Free Of Svhc:
- Yes
- Cad Overall Height:
- 60 mm
- Sale Per Indivisible Quantity:
- 1
- Mercury Free:
- Yes
- Electrical Composition Code:
- C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting
- Head Type:
- standard
- Mounting Diameter:
- 22 mm
- Circularity Profile:
- ENVEOLI1808008EN
- Product Certifications:
- CSA || BV || DNV || GL || LROS (Lloyds register of shipping) || UL Listed
- Warranty:
- 18 months
- Device Presentation:
- basic element
- Product Or Component Type:
- head for non-illuminated push-button
- Shape Of Signaling Unit Head:
- round
- Bezel Material:
- chromium plated metal
- Cad Overall Width:
- 60 mm
- Range Of Product:
- Harmony XB4
- Protective Treatment:
- TH
- Ambient Air Temperature For Operation:
- -40-70 °C
- Ik Degree Of Protection:
- IK03 IEC 50102
- Device Short Name:
- ZB4
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Standards:
- CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-5 || UL 508 || JIS C8201-5-1 || EN/IEC 60947-5-4 || JIS C8201-1
- Sustainable Offer Status:
- Green Premium product
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Toxic Heavy Metal Free:
- Yes
- Type Of Operator:
- spring return
- Ambient Air Temperature For Storage:
- -40-70 °C
