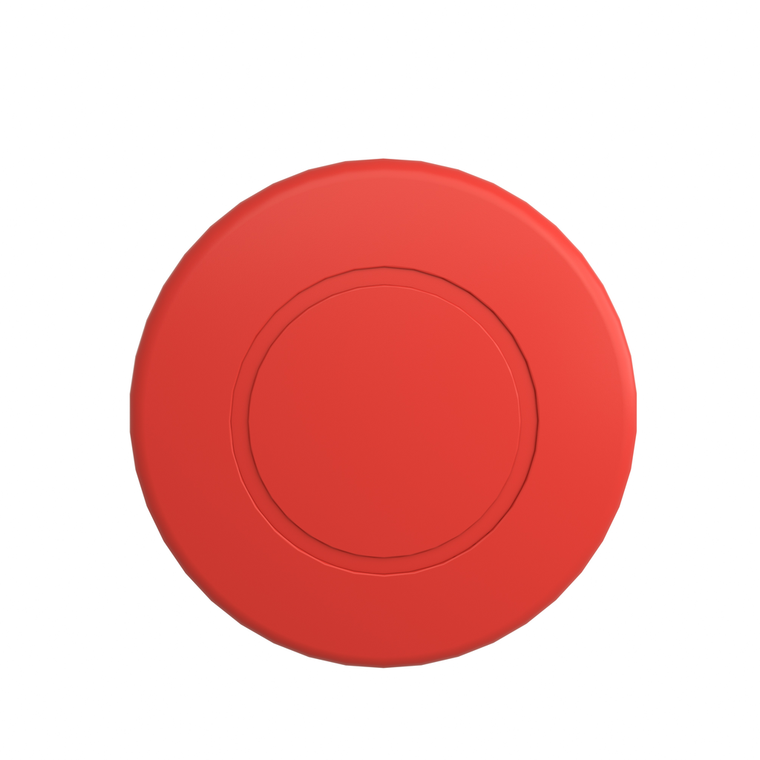

Schneider Electric ZB4BS864 Emergency Stop Op. Head
Schneider Electric
$75.34
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony XB4, emergency stop / shutdown 60mm mushroom red button head operates with a latched turn to release mechanism. This emergency stop / shutdown button head also called EMS (Emergency Machine Stop) and EMO (Emergency Off) provides an ergonomic interface for controlling your machines. It is easily installed on compatible complete emergency stop and switching off pushbuttons. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 60mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
- Toxic Heavy Metal Free:
- Yes
- Net Weight:
- 0.093 kg
- Circularity Profile:
- ENVEOLI2201004EN
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Shape Of Signaling Unit Head:
- round
- Ambient Air Temperature For Operation:
- -40-70 °C
- Sustainable Offer Status:
- Green Premium product
- Operator Profile:
- red mushroom à 60 mm, unmarked
- Type Of Operator:
- trigger action and mechanical latching
- Cad Overall Depth:
- 57 mm
- Product Certifications:
- LROS (Lloyds register of shipping) || BV || UL Listed || DNV || GL || CSA
- Electrical Shock Protection Class:
- class I IEC 61140
- Electrical Composition Code:
- C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || C10 4 single and double front mounting
- Device Short Name:
- ZB4
- Device Presentation:
- basic element
- Product Or Component Type:
- head for emergency switching off push-button
- Warranty:
- 18 months
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP69 || IP69K
- Cad Overall Height:
- 60 mm
- Mounting Diameter:
- 22 mm
- Ik Degree Of Protection:
- IK03 IEC 50102
- Rohs Exemption Information:
- Yes
- Ambient Air Temperature For Storage:
- -40-70 °C
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X || NEMA 4 || NEMA 12
- Mercury Free:
- Yes
- Head Type:
- standard
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Sale Per Indivisible Quantity:
- 1
- Cad Overall Width:
- 60 mm
- Range Of Product:
- Harmony XB4
- China Rohs Regulation:
- X
- Protective Treatment:
- TH
- Mechanical Durability:
- 300000 cycles
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Bezel Material:
- chromium plated metal
- Environmental Disclosure:
- ENVPEP2201004EN
- Reach Free Of Svhc:
- Yes
- Standards:
- UL 508 || IEC 60947-5-5 || IEC 60204-1 || IEC 60364-5-53 || ISO 13850 || IEC 60947-5-4 || IEC 60947-5-1 || CSA C22.2 No 14 || GB 14048.5 || JIS C8201-5-1 || IEC 60947-1 || JIS C8201-1
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Reset:
- turn to release
