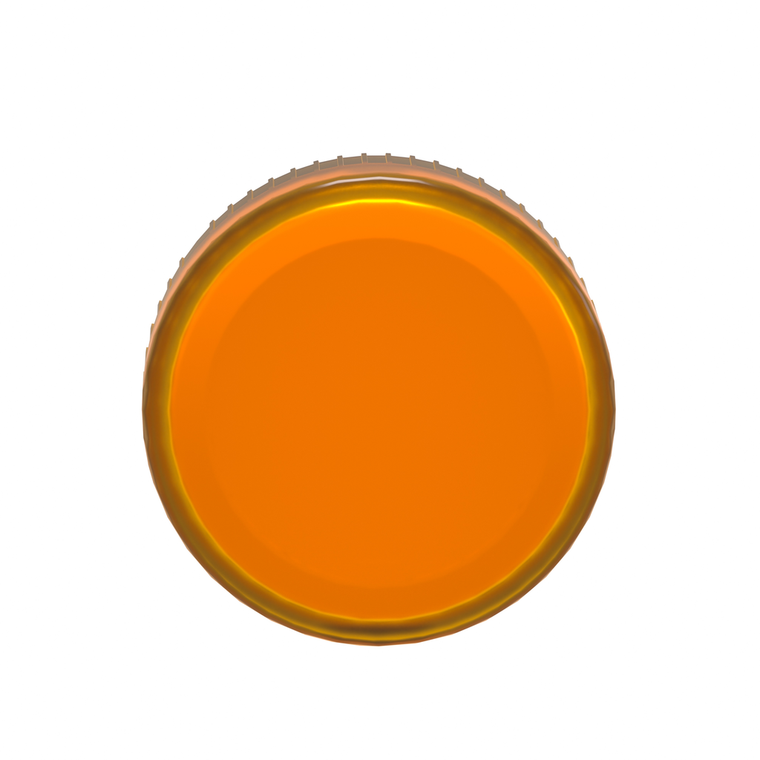

Schneider Electric ZB4BV05 Pilot Light Head
Schneider Electric
$5.59
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony XB4, plain lens orange head for pilot light is supplied with BA9s base. This head with BA9s base pilot light is designed to last without maintenance for a bright indicator of process and machine operations. It is clearly distinguishable visually at a distance thanks to a clear color of len, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
- Electrical Composition Code:
- P3 front mounting BA 9s || P4 front mounting BA 9s and transformer
- Device Presentation:
- basic element
- Cap/Operator Or Lens Colour:
- orange
- Rohs Exemption Information:
- Yes
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Sale Per Indivisible Quantity:
- 1
- Product Or Component Type:
- head for pilot light
- Bezel Material:
- chromium plated metal
- Cad Overall Height:
- 29 mm
- Range Of Product:
- Harmony XB4
- Mercury Free:
- Yes
- Device Short Name:
- ZB4
- Protective Treatment:
- TH
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Overvoltage Category:
- class I IEC 60536
- Standards:
- IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60947-5-4 || IEC 60947-5-5 || JIS C8201-5-1 || UL 508 || IEC 60947-1 || JIS C8201-1
- Ambient Air Temperature For Operation:
- -40-55 °C
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Product Compatibility:
- BA 9s
- Head Type:
- standard
- Mounting Diameter:
- 22 mm
- Sustainable Offer Status:
- Green Premium product
- Ambient Air Temperature For Storage:
- -40-70 °C
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Ik Degree Of Protection:
- IK06 IEC 50102
- China Rohs Regulation:
- X
- Reach Free Of Svhc:
- Yes
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Toxic Heavy Metal Free:
- Yes
- Environmental Disclosure:
- ENVPEP2308026EN
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Cad Overall Width:
- 29 mm
- Warranty:
- 18 months
- Net Weight:
- 0.027 kg
- Cad Overall Depth:
- 31 mm
- Shape Of Signaling Unit Head:
- round
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Operator Additional Information:
- with plain lens
- Circularity Profile:
- ENVEOLI2308026EN
