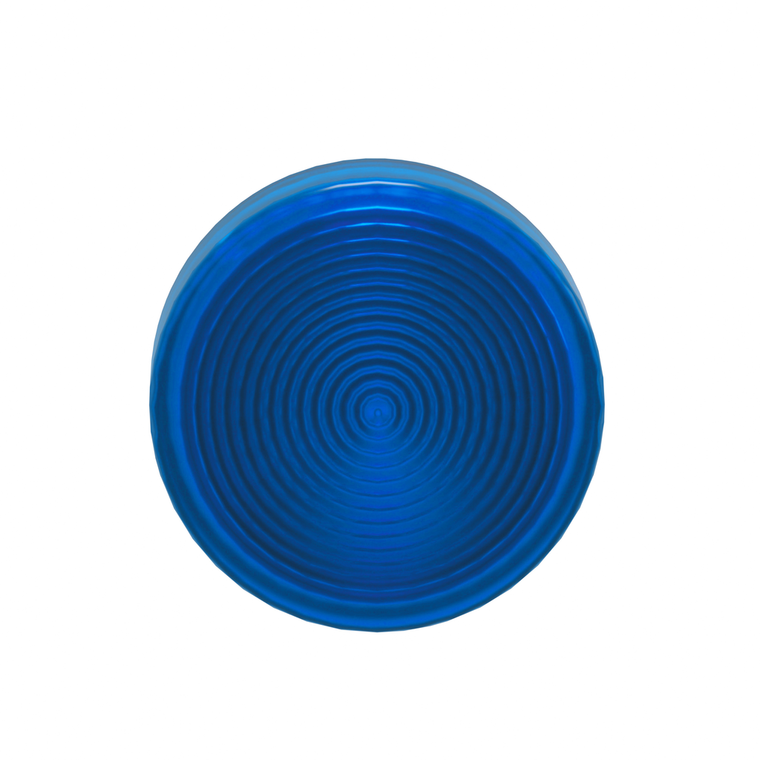

Schneider Electric ZB4BV063S Pilot Light Head
Schneider Electric
$5.59
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony XB4, grooved lens head for pilot light with universal LED is blue. This head for universal LED pilot light is designed to last without maintenance for a bright indicator of process and machine operations. It is clearly distinguishable visually at a distance thanks to a clear color of len, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Mercury Free:
- Yes
- Ambient Air Temperature For Operation:
- -40-70 °C
- Warranty:
- 18 months
- Device Presentation:
- basic element
- Mounting Diameter:
- 22 mm
- Device Short Name:
- ZB4
- Cap/Operator Or Lens Colour:
- blue
- Ik Degree Of Protection:
- IK06 IEC 50102
- Sustainable Offer Status:
- Green Premium product
- Bezel Material:
- chromium plated metal
- Overvoltage Category:
- class I IEC 60536
- Net Weight:
- 0.026 kg
- Rohs Exemption Information:
- Yes
- Protective Treatment:
- TH
- Product Or Component Type:
- head for pilot light
- Cad Overall Depth:
- 30 mm
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Shape Of Signaling Unit Head:
- round
- Sale Per Indivisible Quantity:
- 1
- Range Of Product:
- Harmony XB4
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Toxic Heavy Metal Free:
- Yes
- Circularity Profile:
- ENVEOLI2308026EN
- Reach Free Of Svhc:
- Yes
- China Rohs Regulation:
- X
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Electrical Composition Code:
- P1 front mounting integral LED || P2 front mounting integral LED and transformer
- Product Compatibility:
- universal LED
- Environmental Characteristic:
- high ambient lighting environment
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Ambient Air Temperature For Storage:
- -40-70 °C
- Cad Overall Height:
- 29 mm
- Head Type:
- standard
- Operator Additional Information:
- with grooved lens
- Cad Overall Width:
- 29 mm
- Environmental Disclosure:
- ENVPEP2308026EN
- Standards:
- IEC 60947-5-1 || IEC 60947-5-5 || UL 508 || IEC 60947-1 || IEC 60947-5-4 || CSA C22.2 No 14 || JIS C8201-5-1 || JIS C8201-1
