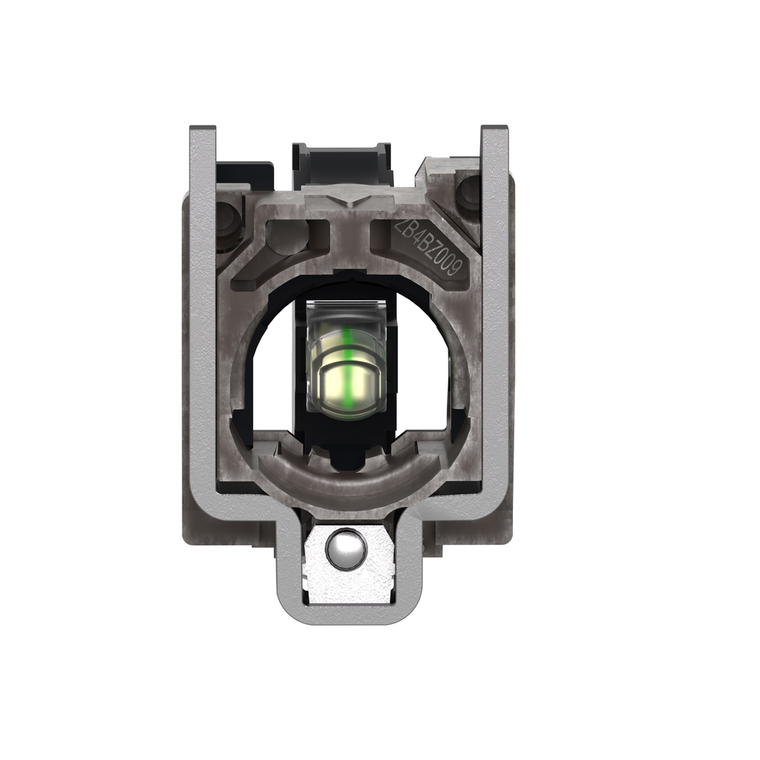

Schneider Electric ZB4BVJ1 12 V Led Pilot Light Body
This Harmony XB4, light block with body/fixing collar is white, operates with a universal LED. It has a metal body and is compatible with Harmony XB4 pilot lights. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units via clip together assembly. It enables visual distinction of signaling units via illumination by universal LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. It is designed to fit with a standard 22mm control and signaling units, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 55°C allows versatility in usage of product.
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Tightening Torque:
- 0.8-1.2 N.m IEC 60947-1
- Bulb Base:
- integral LED
- Service Life:
- 100000 h at rated voltage and 25 °C
- Light Source:
- universal LED
- Net Weight:
- 0.054 kg
- Cad Overall Width:
- 30 mm
- Electromagnetic Emission:
- class B IEC 55011
- Terminals Description Iso N°1:
- (X1-X2)PL
- [Ui] Rated Insulation Voltage:
- 600 V 3)IEC 60947-1
- Mercury Free:
- Yes
- Supply Voltage Limits:
- 10-15 V DC || 10.2-13.8 V AC
- Signalling Type:
- steady
- China Rohs Regulation:
- X
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV IEC 60947-1
- Standards:
- IEC 60947-5-1 || IEC 60947-5-5 || IEC 60947-1 || JIS C8201-5-1 || CSA C22.2 No 14 || IEC 60947-5-4 || UL 508 || JIS C8201-1
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Device Presentation:
- basic sub-assemblies
- Connections - Terminals:
- screw clamp terminals, <= 2 x 1.5 mm² with cable end || screw clamp terminals, >= 1 x 0.22 mm² without cable end
- Warranty:
- 18 months
- Ambient Air Temperature For Operation:
- -40-70 °C
- Shape Of Screw Head:
- cross Philips no 1 || cross pozidriv No 1 || slotted flat à 4 mm || slotted flat à 5.5 mm
- Ambient Air Temperature For Storage:
- -40-70 °C
- Electrical Shock Protection Class:
- class I IEC 60536
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Cad Overall Height:
- 47 mm
- Resistance To Fast Transients:
- 2 kV IEC 61000-4-4
- Rohs Exemption Information:
- Yes
- Device Short Name:
- ZB4
- Product Certifications:
- DNV || LROS (Lloyds register of shipping) || GL || BV || CSA || UL Listed
- Circularity Profile:
- ENVEOLI1808008EN
- Cad Overall Depth:
- 37 mm
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Current Consumption:
- 18 mA
- Sale Per Indivisible Quantity:
- 1
- Environmental Disclosure:
- ENVPEP1808008EN
- Surge Withstand:
- 1 kV IEC 61000-4-5
- Sustainable Offer Status:
- Green Premium product
- [Us] Rated Supply Voltage:
- 12 V AC/DC 50/60 Hz
- Resistance To Electromagnetic Fields:
- 10 V/m IEC 61000-4-3
- Resistance To Electrostatic Discharge:
- 6 kV on contact (on metal parts) IEC 61000-2-6 || 8 kV in free air (in insulating parts) IEC 61000-2-6
- Fixing Collar Material:
- zamak
- Light Source Colour:
- white
- Protective Treatment:
- TH
- Product Or Component Type:
- complete body/light block assembly
- Range Of Product:
- Harmony XB4
