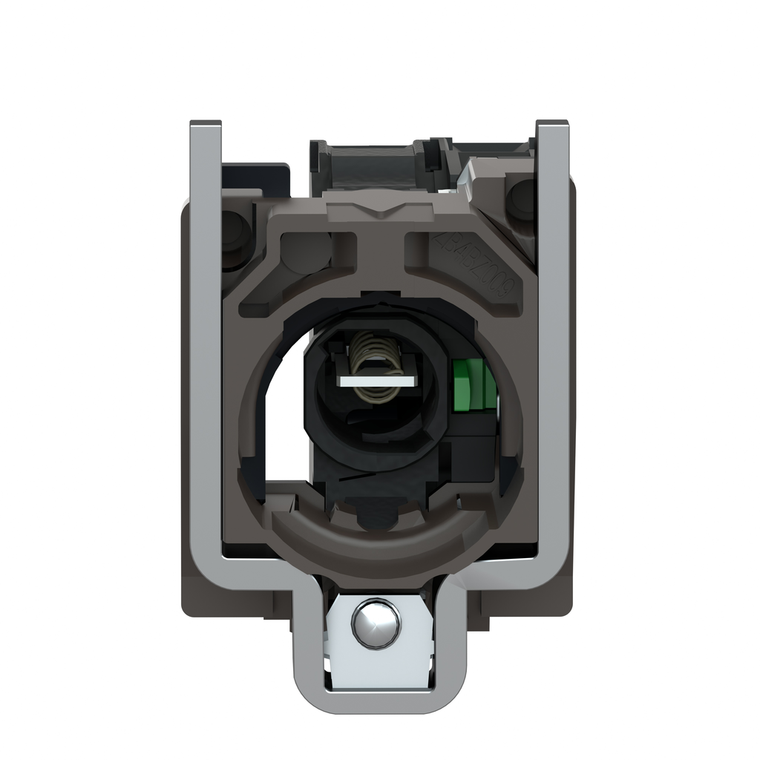

Schneider Electric ZB4BW061 Direct Supply Ill. P.B. B

Schneider Electric ZB4BW061 Direct Supply Ill. P.B. B

Schneider Electric
SKU:
ZB4BW061
|
UPC:
3389110891126
Availability:
Factory stock
$40.43
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Harmony XB4, light block with body/fixing collar isoperates with BA9s bulb. It has 1 x NO contact and a metal body and is compatible with Harmony XB4 pilot lights. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by connected with BA9s bulb. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. It is designed to fit with a standard 22mm control and signaling units, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 55°C allows versatility in usage of product.
Additional Information
Device Presentation:
basic sub-assemblies
Range Of Product:
Harmony XB4
Circularity Profile:
ENVEOLI1808008EN
Cad Overall Height:
47 mm
Electrical Reliability:
λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
Positive Opening:
without
Standards:
JIS C8201-5-1 || UL 508 || IEC 60947-5-1 || IEC 60947-5-5 || IEC 60947-5-4 || IEC 60947-1 || CSA C22.2 No 14 || JIS C8201-1
Tightening Torque:
0.8-1.2 N.m IEC 60947-1
Operating Force:
2.3 N NO changing electrical state
Product Or Component Type:
complete body/contact assembly and light block
Operating Torque:
0.05 N.m NO changing electrical state
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947-1
Terminals Description Iso N°1:
(13-14)NO
Mercury Free:
Yes
Contacts Type And Composition:
1 NO
Ambient Air Temperature For Operation:
-40-70 °C
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Net Weight:
0.063 kg
China Rohs Regulation:
X
Device Short Name:
ZB4
Shape Of Screw Head:
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
[Ith] Conventional Free Air Thermal Current:
10 A IEC 60947-5-1
Contacts Usage:
standard
Rohs Exemption Information:
Yes
[Ie] Rated Operational Current:
3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
[Us] Rated Supply Voltage:
<= 250 V
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Signalling Type:
steady
Protective Treatment:
TH
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Head Type:
standard
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Cad Overall Depth:
37 mm
Environmental Disclosure:
ENVPEP1808008EN
[Ui] Rated Insulation Voltage:
600 V 3)IEC 60947-1
Warranty:
18 months
Ambient Air Temperature For Storage:
-40-70 °C
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Fixing Collar Material:
zamak
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Operating Travel:
2.6 mm NO changing electrical state) || 4.3 mm total travel)
Electrical Durability:
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,
Contact Operation:
slow-break
Sale Per Indivisible Quantity:
1
Electrical Shock Protection Class:
class I IEC 60536
Short-Circuit Protection:
10 A cartridge fuse gG IEC 60947-5-1
Contacts Material:
silver alloy (Ag/Ni)
Cad Overall Width:
30 mm
Bulb Base:
BA 9s
Product Certifications:
CSA || LROS (Lloyds register of shipping) || DNV || UL Listed || GL || BV
Light Block Supply:
direct <2.4 W
Light Source:
bulb not included
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
Sustainable Offer Status:
Green Premium product
Mechanical Durability:
5000000 cycles
