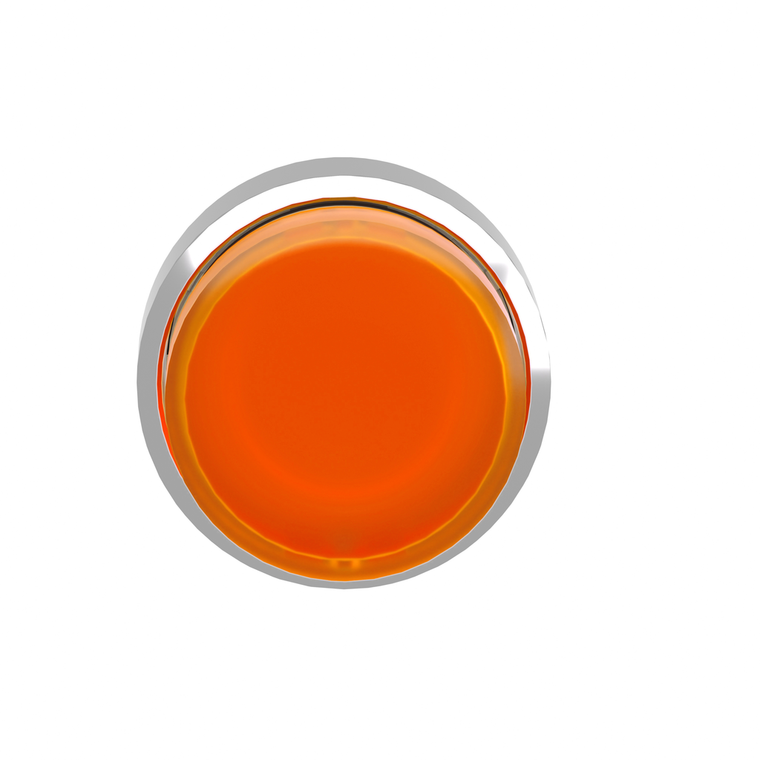

Schneider Electric ZB4BW153 Illuminated Pushbutton He
Schneider Electric
$9.56
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony XB4, plain lens illuminated projecting orange button head operates with a spring return / impulse mechanism. This illuminated button head for universal LED provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color and by touch due to projecting element, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. It provides high brightness for easy identification of function and operation mode, even in brightly lit environments.
- Bezel Material:
- chromium plated metal
- Warranty:
- 18 months
- Overvoltage Category:
- class I IEC 60536
- Mercury Free:
- Yes
- Ambient Air Temperature For Operation:
- -40-70 °C
- Environmental Disclosure:
- ENVPEP1808008EN
- Sustainable Offer Status:
- Green Premium product
- Head Type:
- standard
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Product Compatibility:
- universal LED
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Operator Additional Information:
- with plain lens
- Net Weight:
- 0.029 kg
- Product Certifications:
- UL Listed || BV || CSA || LROS (Lloyds register of shipping) || GL || DNV
- Protective Treatment:
- TH
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP69 || IP69K
- Circularity Profile:
- ENVEOLI1808008EN
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Cad Overall Height:
- 29 mm
- Rohs Exemption Information:
- Yes
- Sale Per Indivisible Quantity:
- 1
- Mounting Diameter:
- 22 mm
- Product Or Component Type:
- head for illuminated push-button
- Device Short Name:
- ZB4
- Mechanical Durability:
- 10000000 cycles
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Cad Overall Depth:
- 33 mm
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Cad Overall Width:
- 29 mm
- Operator Profile:
- orange projecting, unmarked
- Reach Free Of Svhc:
- Yes
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Electrical Composition Code:
- M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- China Rohs Regulation:
- X
- Standards:
- EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-4 || UL 508 || JIS C8201-5-1 || EN/IEC 60947-5-5 || EN/IEC 60947-1 || JIS C8201-1
- Toxic Heavy Metal Free:
- Yes
- Shape Of Signaling Unit Head:
- round
- Ik Degree Of Protection:
- IK05 EN 50102
- Type Of Operator:
- spring return
- Device Presentation:
- basic sub-assemblies
- Ambient Air Temperature For Storage:
- -40-70 °C
- Range Of Product:
- Harmony XB4
