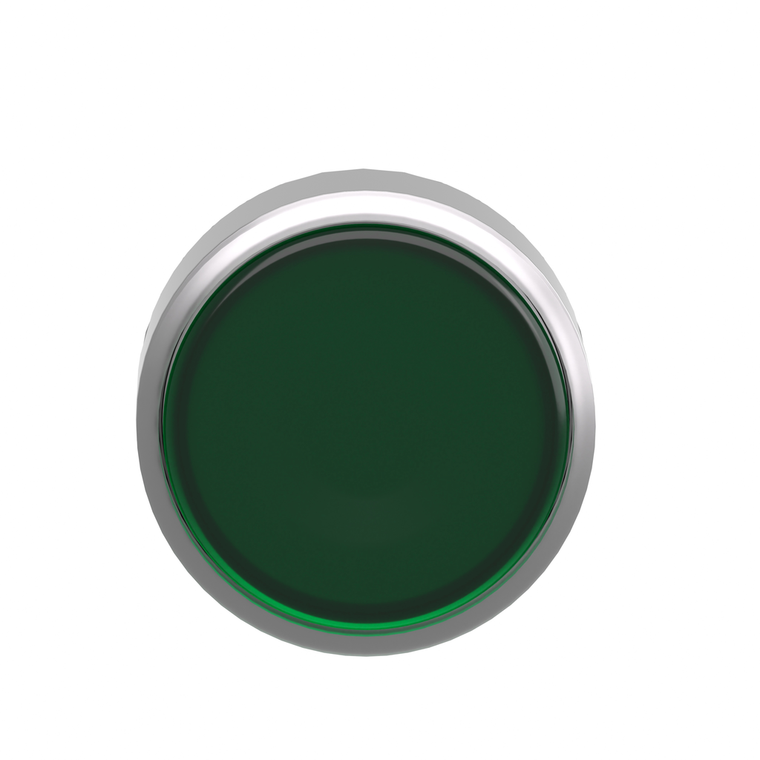

Schneider Electric ZB4BW333 Illuminated Pushbutton He
Schneider Electric
$13.67
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony XB4, plain lens illuminated flush green button head for universal LED operates with a spring return / impulse mechanism. This illuminated button head for universal LED provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to illuminated, clear color and by touch due to flush element, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. It provides high brightness for easy identification of function and operation mode, even in brightly lit environments. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.
- Range Of Product:
- Harmony XB4
- Product Compatibility:
- universal LED
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- China Rohs Regulation:
- X
- Reach Free Of Svhc:
- Yes
- Operator Profile:
- green flush, unmarked
- Bezel Material:
- chromium plated metal
- Head Type:
- standard
- Ik Degree Of Protection:
- IK06 EN 50102
- Rohs Exemption Information:
- Yes
- Mounting Diameter:
- 22 mm
- Protective Treatment:
- TH
- Product Certifications:
- GL || BV || LROS (Lloyds register of shipping) || DNV || UL Listed || CSA
- Net Weight:
- 0.026 kg
- Device Short Name:
- ZB4
- Mercury Free:
- Yes
- Toxic Heavy Metal Free:
- Yes
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Cad Overall Height:
- 29 mm
- Warranty:
- 18 months
- Sale Per Indivisible Quantity:
- 1
- Device Presentation:
- basic sub-assemblies
- Type Of Operator:
- spring return
- Cad Overall Width:
- 29 mm
- Operator Additional Information:
- with plain lens
- Shape Of Signaling Unit Head:
- round
- Ambient Air Temperature For Operation:
- -40-70 °C
- Cad Overall Depth:
- 30 mm
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Circularity Profile:
- ENVEOLI1808008EN
- Ambient Air Temperature For Storage:
- -40-70 °C
- Overvoltage Category:
- class I IEC 60536
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Electrical Composition Code:
- M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED
- Standards:
- EN/IEC 60947-5-5 || UL 508 || JIS C8201-5-1 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || JIS C8201-1
- Product Or Component Type:
- head for illuminated push-button
- Mechanical Durability:
- 10000000 cycles
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Sustainable Offer Status:
- Green Premium product
- Environmental Disclosure:
- ENVPEP1808008EN
