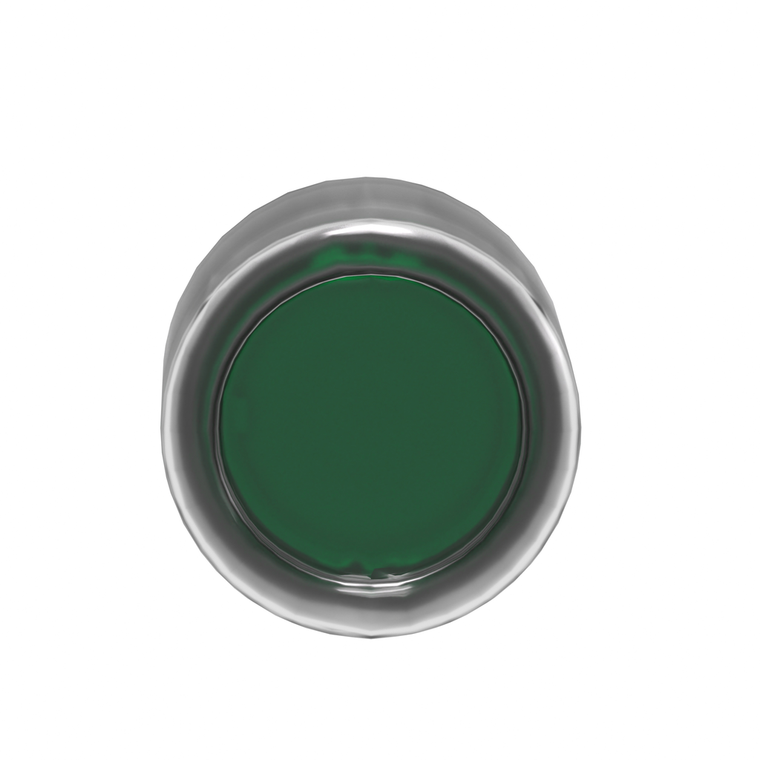

Schneider Electric ZB4BW533 Illuminated Pushbutton He

Schneider Electric ZB4BW533 Illuminated Pushbutton He

Schneider Electric
SKU:
ZB4BW533
|
UPC:
3389110892796
Availability:
Contact us to confirm availability and lead times.
$31.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Harmony XB4, plain lens illuminated flush green button head with clear boot operates with a spring return / impulse mechanism. This button head with clear boot provides an ergonomic interface for controlling your machines and a simple solution to prevent dirt and contaminants. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to illuminated head and clear colors. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. The clear boot prevents growth of bacteria in joints and gaps, it makes this product ideal for high hygiene environments. It provides high brightness for easy identification of function and operation mode, even in brightly lit environments.
Additional Information
Circularity Profile:
ENVEOLI1808008EN
Standards:
EN/IEC 60947-5-4 || EN/IEC 60947-1 || CSA C22.2 No 14 || JIS C8201-5-1 || UL 508 || EN/IEC 60947-5-1 || EN/IEC 60947-5-5 || JIS C8201-1
Type Of Operator:
spring return
Sale Per Indivisible Quantity:
1
Device Presentation:
basic sub-assemblies
Reach Free Of Svhc:
Yes
Product Compatibility:
universal LED
Electrical Composition Code:
M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED
Cad Overall Width:
29 mm
Sustainable Offer Status:
Green Premium product
Ambient Air Temperature For Storage:
-40-70 °C
Rohs Exemption Information:
Yes
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Net Weight:
0.031 kg
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Range Of Product:
Harmony XB4
Environmental Disclosure:
ENVPEP1808008EN
Product Or Component Type:
head for illuminated push-button
Shape Of Signaling Unit Head:
round
Ambient Air Temperature For Operation:
-40-70 °C
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Mercury Free:
Yes
Mechanical Durability:
10000000 cycles
Head Type:
standard
Ik Degree Of Protection:
IK06 EN 50102
Device Short Name:
ZB4
Cad Overall Height:
29 mm
Operator Additional Information:
clear boot
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Warranty:
18 months
Bezel Material:
chromium plated metal
Ip Degree Of Protection:
IP66 IEC 60529 || IP67
Cad Overall Depth:
30 mm
China Rohs Regulation:
X
Toxic Heavy Metal Free:
Yes
Product Certifications:
UL Listed || CSA || DNV || LROS (Lloyds register of shipping) || GL || BV
Operator Profile:
green flush, unmarked
Mounting Diameter:
22 mm
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Protective Treatment:
TH
Important Message:
A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
Overvoltage Category:
class I IEC 60536
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
