Schneider Electric ZB4BW7A1715 Metal Double Headed Pushbuttons With Pil

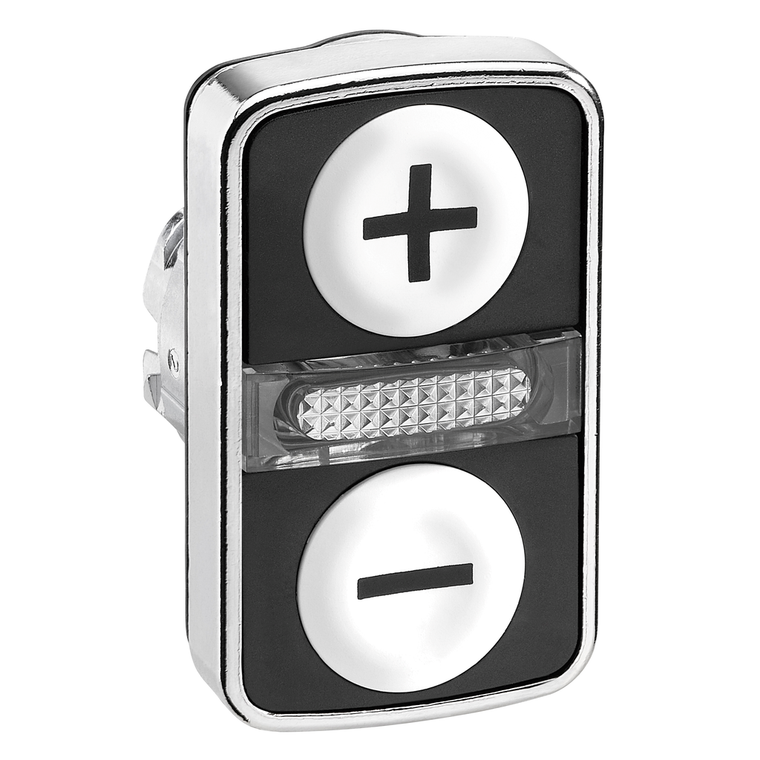

This Harmony XB4, illuminated double head has 2 white buttons and 1 central white pilot light, operates with a spring return / impulse mechanism. It is marked with "+" and "-"symbols. This double head provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its pilot light and illuminated head with clear colors, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. It provides high brightness for easy identification of function and operation mode, even in brightly lit environments.
- Operators Description:
- white ''+'' - white ''-''
- Shape Of Signaling Unit Head:
- rectangular
- Electrical Shock Protection Class:
- class I IEC 61140
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529 || IP69 || IP69K
- Warranty:
- 18 months
- Net Weight:
- 0.056 kg
- Environmental Disclosure:
- ENVPEP1808008EN
- Bezel Material:
- chromium plated metal
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Protective Treatment:
- TH
- Electrical Composition Code:
- M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Device Presentation:
- basic sub-assemblies
- China Rohs Regulation:
- X
- Head Type:
- standard
- Colour Of Marking:
- white marking when green, red or black caps || black marking when white caps
- Mercury Free:
- Yes
- Mounting Diameter:
- 22 mm
- Standards:
- EN/IEC 60947-1 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-5-1 || JIS C8201-5-1 || EN/IEC 60947-5-5 || CSA C22.2 No 14 || JIS C8201-1
- Ambient Air Temperature For Storage:
- -40-70 °C
- Operator Profile:
- white flush, - black) || white flush, + black)
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Cad Overall Height:
- 50 mm
- Product Or Component Type:
- head for illuminated double-headed push-button
- Sustainable Offer Status:
- Green Premium product
- Product Compatibility:
- integral LED
- Mechanical Durability:
- 1000000 cycles
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Operator Profile:
- 2 flush push-buttons - 1 central pilot light
- Ik Degree Of Protection:
- IK06 IEC 50102
- Type Of Operator:
- spring return
- Sale Per Indivisible Quantity:
- 1
- Device Short Name:
- ZB4
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Circularity Profile:
- ENVEOLI1808008EN
- Toxic Heavy Metal Free:
- Yes
- Range Of Product:
- Harmony XB4
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ambient Air Temperature For Operation:
- -40-70 °C
- Product Certifications:
- GL || DNV || LROS (Lloyds register of shipping) || UL Listed || BV || CSA
- Reach Free Of Svhc:
- Yes
- Rohs Exemption Information:
- Yes
- Cad Overall Depth:
- 30 mm
- Cad Overall Width:
- 30 mm
