Schneider Electric ZB4BZ103 Screw Terminal Contact B
Schneider Electric
$38.20
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

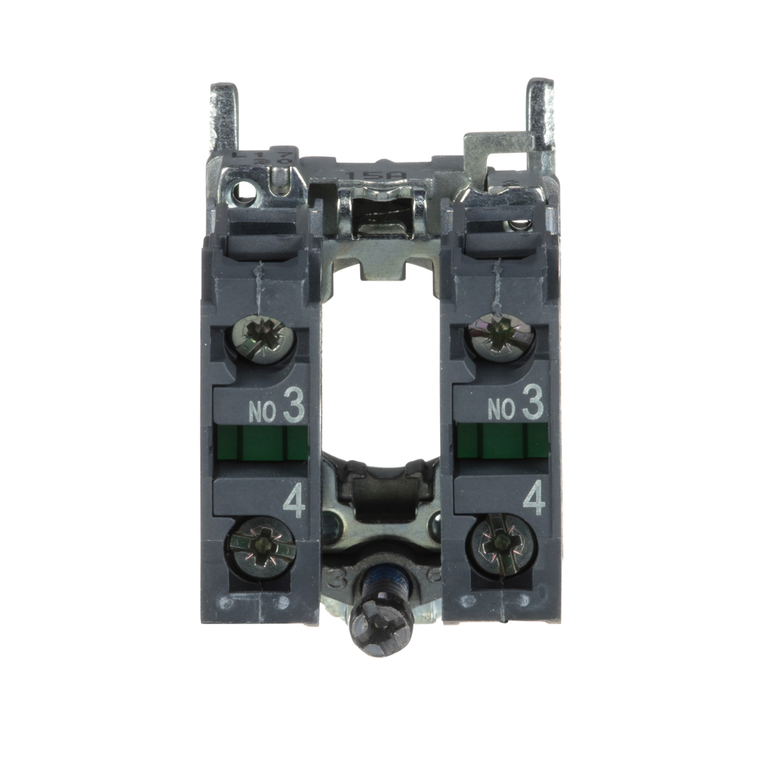

Schneider Electric ZB4BZ103 Screw Terminal Contact B
Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. 1 million cycle high endurance provides less maintenance and damage in your installation. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.
- Positive Opening:
- without
- Ambient Air Temperature For Storage:
- -40-70 °C
- Standards:
- JIS C8201-5-1 || IEC 60947-1 || IEC 60947-5-4 || CSA C22.2 No 14 || IEC 60947-5-1 || IEC 60947-5-5 || UL 508 || JIS C8201-1
- [Ith] Conventional Free Air Thermal Current:
- 10 A IEC 60947-5-1
- Contacts Usage:
- standard contacts
- [Ui] Rated Insulation Voltage:
- 600 V 3)IEC 60947-1
- Tightening Torque:
- 0.8-1.2 N.m IEC 60947-1
- Ip Degree Of Protection:
- IP20 IEC 60529
- Product Certifications:
- BV || CSA || UL || DNV || LROS (Lloyds register of shipping) || GL
- Circularity Profile:
- ENVEOLI1808008EN
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Environmental Disclosure:
- ENVPEP1808008EN
- Short-Circuit Protection:
- 10 A cartridge fuse gG IEC 60947-5-1
- Mechanical Durability:
- 5000000 cycles
- Operating Torque:
- 0.05 N.m NO changing electrical state
- Operating Travel:
- 2.6 mm NO changing electrical state) || 4.3 mm total travel)
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV IEC 60947-1
- Cad Overall Depth:
- 37 mm
- Cad Overall Height:
- 47 mm
- Net Weight:
- 0.062 kg
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Contacts Material:
- silver alloy (Ag/Ni)
- Device Presentation:
- basic sub-assemblies
- Electrical Reliability:
- λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4
- Device Composition:
- body || fixing collar
- Mercury Free:
- Yes
- Sale Per Indivisible Quantity:
- 1
- Head Type:
- standard
- Product Or Component Type:
- complete body/contact assembly
- Sustainable Offer Status:
- Green Premium product
- Shape Of Screw Head:
- cross Philips no 1 || cross pozidriv No 1 || slotted flat à 4 mm || slotted flat à 5.5 mm
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Fixing Collar Material:
- zamak
- Contact Block Type:
- single
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free Of Svhc:
- Yes
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Rohs Exemption Information:
- Yes
- Contact Operation:
- slow-break
- Contacts Type And Composition:
- 2 NO
- Cad Overall Width:
- 30 mm
- Connections - Terminals:
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
- Toxic Heavy Metal Free:
- Yes
- [Ie] Rated Operational Current:
- 3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
- Electrical Durability:
- 10000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 10000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 10000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 10000000 cycles, DC-
- Protective Treatment:
- TH
- China Rohs Regulation:
- X
- Range Of Product:
- Harmony XB4
- Warranty:
- 18 months
- Device Short Name:
- ZB4
- Terminals Description Iso N°1:
- (13-14)NO
- Ambient Air Temperature For Operation:
- -40-70 °C
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
