Schneider Electric ZB4BZ103TQ Screw Terminal Contact B Pack of 100
Schneider Electric
$3,820.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric ZB4BZ103TQ Screw Terminal Contact B Pack of 100

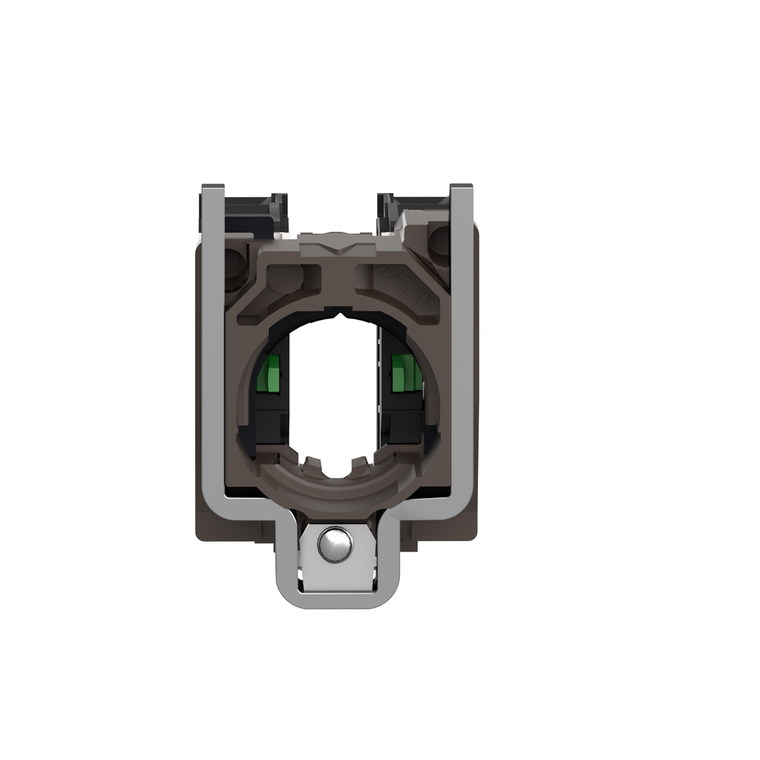

This body fixing collar is pre-mounted with a contact block Simply adding a head to this assembly will provide you with a complete ready-to-use push-button It protects operators from unexpected contact with live circuits thanks to its IP20 protection index It is sold by 100 units
- Positive Opening:
- without
- Electrical Durability:
- 10000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 10000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 10000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 10000000 cycles, DC-
- [Ie] Rated Operational Current:
- 3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
- Standards:
- IEC 60947-5-4 || IEC 60947-5-5 || UL 508 || JIS C8201-5-1 || IEC 60947-1 || CSA C22.2 No 14 || IEC 60947-5-1 || JIS C8201-1
- Connections - Terminals:
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Shape Of Screw Head:
- cross Philips no 1 || cross pozidriv No 1 || slotted flat à 4 mm || slotted flat à 5.5 mm
- Device Composition:
- body || fixing collar
- Protective Treatment:
- TH
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Operating Torque:
- 0.05 N.m NO changing electrical state
- Contact Operation:
- slow-break
- Ambient Air Temperature For Storage:
- -40-70 °C
- Warranty:
- 18 months
- Product Certifications:
- DNV || UL || LROS (Lloyds register of shipping) || BV || CSA || GL
- Short-Circuit Protection:
- 10 A cartridge fuse gG IEC 60947-5-1
- Electrical Reliability:
- λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4
- [Ith] Conventional Free Air Thermal Current:
- 10 A IEC 60947-5-1
- Circularity Profile:
- ENVEOLI1808008EN
- Contacts Material:
- silver alloy (Ag/Ni)
- China Rohs Regulation:
- X
- Ambient Air Temperature For Operation:
- -40-70 °C
- Device Short Name:
- ZB4
- Contacts Usage:
- standard contacts
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Mercury Free:
- Yes
- Contacts Type And Composition:
- 2 NO
- Tightening Torque:
- 0.8-1.2 N.m IEC 60947-1
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Range Of Product:
- Harmony XB4
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV IEC 60947-1
- Ip Degree Of Protection:
- IP20 IEC 60529
- Product Or Component Type:
- complete body/contact assembly
- Rohs Exemption Information:
- Yes
- Fixing Collar Material:
- zamak
- Sustainable Offer Status:
- Green Premium product
- Sale Per Indivisible Quantity:
- 100
- [Ui] Rated Insulation Voltage:
- 600 V 3)IEC 60947-1
- Toxic Heavy Metal Free:
- Yes
- Contact Block Type:
- single
- Mechanical Durability:
- 5000000 cycles
- Environmental Disclosure:
- ENVPEP1808008EN
- Reach Free Of Svhc:
- Yes
- Head Type:
- standard
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Operating Travel:
- 2.6 mm NO changing electrical state) || 4.3 mm total travel)
- Datasheet:
- View
