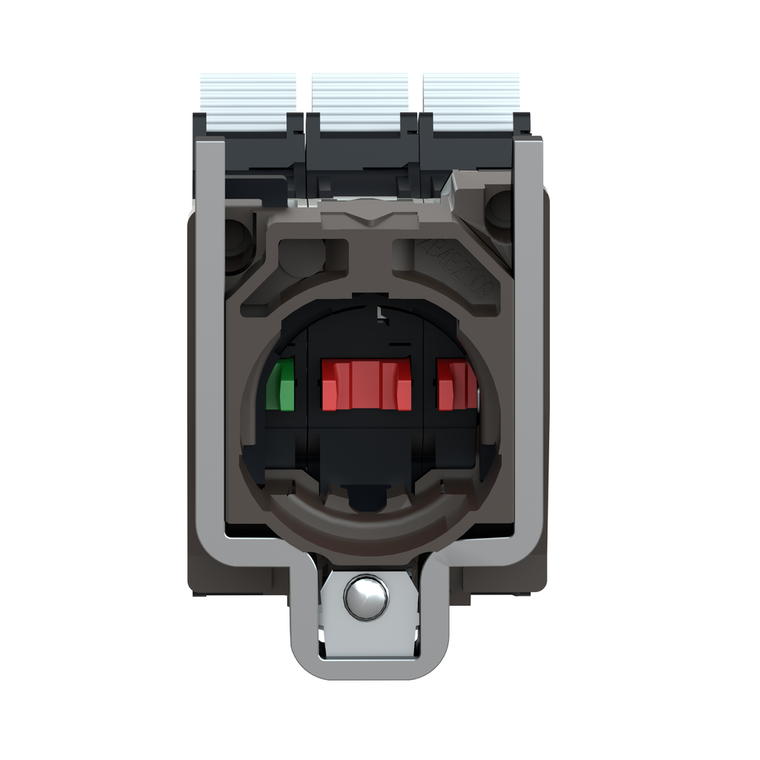

Schneider Electric ZB4BZ1055 Complete Body With 1No-1Nc Spring Termin
Schneider Electric
$30.87
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony XB4, single contact block is pre-assembled on a body/collar fixing unit. It has 1 x NO + 1 x NC contacts. It is compatible with Harmony XB4 This body fixing collar is pre-mounted with a contact block. Simply adding a head to this assembly will provide you with a complete ready-to-use push button. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. 1 million cycle high endurance provides less maintenance and damage in your installation. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
- Ambient Air Temperature For Operation:
- -40-70 °C
- Sale Per Indivisible Quantity:
- 1
- China Rohs Regulation:
- X
- Device Composition:
- fixing collar || contact block
- Net Weight:
- 0.054 kg
- Environmental Disclosure:
- ENVPEP1808008EN
- Product Or Component Type:
- complete body/contact assembly
- Cad Overall Height:
- 27.6 mm
- Contact Block Type:
- single
- Contacts Type And Composition:
- 1 NO + 1 NC
- Device Short Name:
- ZB4
- Protective Treatment:
- TH
- Reach Free Of Svhc:
- Yes
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- [Ie] Rated Operational Current:
- 10 A, Q600 || 10 A, A600
- Range Of Product:
- Harmony XB4
- Mercury Free:
- Yes
- Circularity Profile:
- ENVEOLI1808008EN
- Contact Operation:
- slow-break
- Head Type:
- standard
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Sustainable Offer Status:
- Green Premium product
- Mechanical Durability:
- 10000000 cycles
- Contacts Material:
- silver alloy (Ag/Ni)
- Ambient Air Temperature For Storage:
- -40-70 °C
- Ip Degree Of Protection:
- IP20 IEC 60529
- Rohs Exemption Information:
- Yes
- Cad Overall Width:
- 46.2 mm
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Electrical Durability:
- 10000000 cycles, 10 A
- Device Presentation:
- basic sub-assemblies
- Toxic Heavy Metal Free:
- Yes
- Fixing Collar Material:
- zamak
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Cad Overall Depth:
- 30 mm
- Warranty:
- 18 months
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
