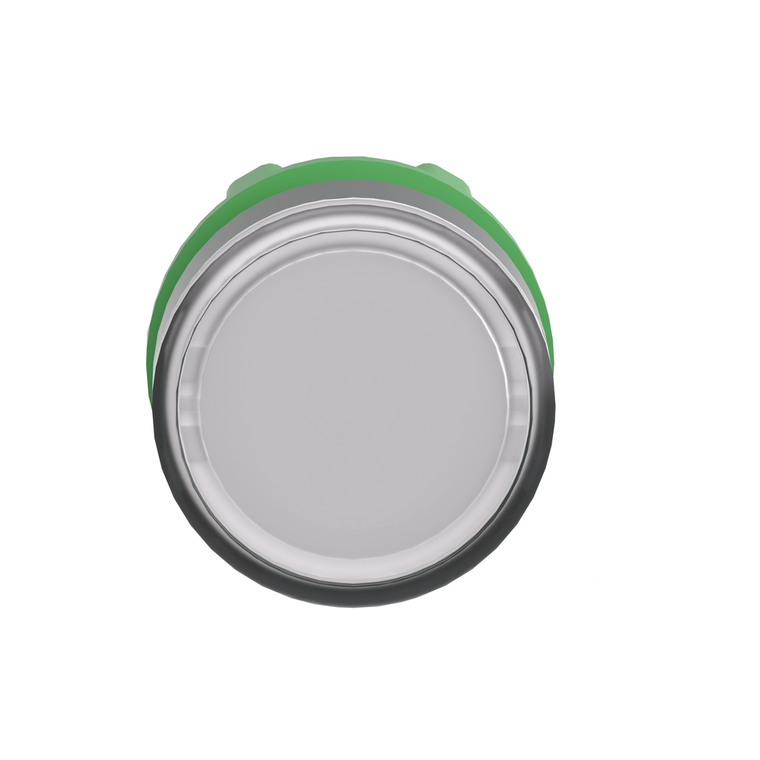

Schneider Electric ZB5AA18 Pushbutton Operator Head
Schneider Electric
$16.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This white flush button head with transparent cap provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is used for insertion of legend. It is clearly distinguishable visually at a distance thanks to its clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It makes it ideal for operation in harsh environments.
- Cap/Operator Or Lens Colour:
- white
- Standards:
- UL 508 || EN/IEC 60947-5-1 || GB 14048.5 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || CSA C22.2 No 14 || JIS C8201-5-1 || JIS C8201-1
- Mounting Diameter:
- 22 mm
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Product Certifications:
- UL Listed || CSA || DNV || LROS (Lloyds register of shipping) || GL || BV
- Device Presentation:
- basic element
- Cad Overall Depth:
- 30 mm
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Net Weight:
- 0.018 kg
- Warranty:
- 18 months
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Shape Of Signaling Unit Head:
- round
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Mercury Free:
- Yes
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Marking:
- unmarked
- Ambient Air Temperature For Storage:
- -40-70 °C
- Rohs Exemption Information:
- Yes
- Type Of Operator:
- spring return
- Environmental Disclosure:
- ENVPEP1710010EN
- Operator Profile:
- white flush, unmarked
- Group Of Product:
- flush push with inser of legend
- Bezel Material:
- dark grey plastic
- Overvoltage Category:
- class II IEC 60536
- Mechanical Durability:
- 10000000 cycles
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Toxic Heavy Metal Free:
- Yes
- Product Compatibility:
- universal LED
- Cad Overall Height:
- 29 mm
- Ambient Air Temperature For Operation:
- -40-70 °C
- Ik Degree Of Protection:
- IK03 EN 50102
- Sale Per Indivisible Quantity:
- 1
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Reach Free Of Svhc:
- Yes
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Head Type:
- standard
- Cad Overall Width:
- 29 mm
- China Rohs Regulation:
- X
- Operator Additional Information:
- for insertion of legend
- Electrical Composition Code:
- M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2
- Product Or Component Type:
- head for illuminated push-button
- Protective Treatment:
- TC
- Range Of Product:
- Harmony XB5
- Device Short Name:
- ZB5
- Circularity Profile:
- ENVEOLI1710010EN
- Main Group:
- illum push-button
- Sustainable Offer Status:
- Green Premium product
- Datasheet:
- View
