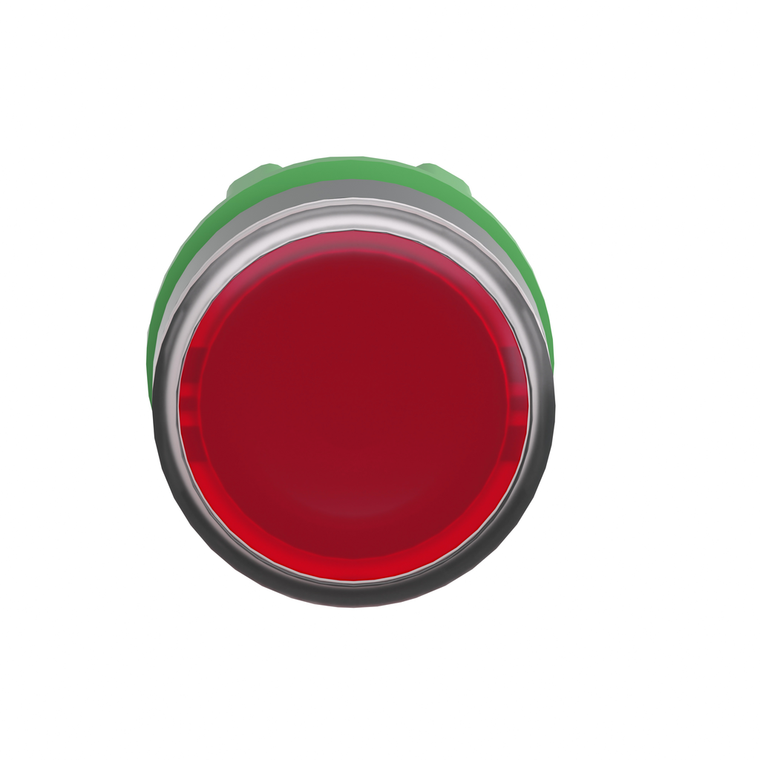

Schneider Electric ZB5AA48 Pushbutton Operator Head
Schneider Electric
$16.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric ZB5AA48 Pushbutton Operator Head
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This red flush button head with transparent cap provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is used for insertion of legend. It is clearly distinguishable visually at a distance thanks to its clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It makes it ideal for operation in harsh environments.
- Ambient Air Temperature For Storage:
- -40-70 °C
- Ik Degree Of Protection:
- IK03 IEC 62262
- Product Or Component Type:
- head for illuminated push-button
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Overvoltage Category:
- class II IEC 60536
- Head Type:
- standard
- Marking:
- unmarked
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Device Presentation:
- basic element
- Group Of Product:
- flush push with inser of legend
- Bezel Material:
- dark grey plastic
- China Rohs Regulation:
- X
- Sale Per Indivisible Quantity:
- 1
- Reach Free Of Svhc:
- Yes
- Device Short Name:
- ZB5
- Shape Of Signaling Unit Head:
- round
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Electrical Composition Code:
- M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2
- Type Of Operator:
- spring return
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Protective Treatment:
- TC
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Ambient Air Temperature For Operation:
- -40-70 °C
- Toxic Heavy Metal Free:
- Yes
- Sustainable Offer Status:
- Green Premium product
- Circularity Profile:
- ENVEOLI1710010EN
- Range Of Product:
- Harmony XB5
- Cad Overall Width:
- 29 mm
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Operator Additional Information:
- for insertion of legend
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Mounting Diameter:
- 22 mm
- Cad Overall Depth:
- 30 mm
- Product Compatibility:
- universal LED
- Cap/Operator Or Lens Colour:
- red
- Main Group:
- illum push-button
- Warranty:
- 18 months
- Mercury Free:
- Yes
- Mechanical Durability:
- 10000000 cycles
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Rohs Exemption Information:
- Yes
- Net Weight:
- 0.018 kg
- Environmental Disclosure:
- ENVPEP1710010EN
- Standards:
- IEC 60947-5-1 || UL 508 || CSA C22.2 No 14 || GB 14048.5 || IEC 60947-1 || JIS C8201-5-1 || IEC 60947-5-4 || JIS C8201-1
- Product Certifications:
- DNV || BV || GL || CSA || UL Listed || LROS (Lloyds register of shipping)
- Cad Overall Height:
- 29 mm
- Operator Profile:
- red flush, unmarked
