Schneider Electric ZB5AA71124 Plastic Double Headed Pushbuttons With S

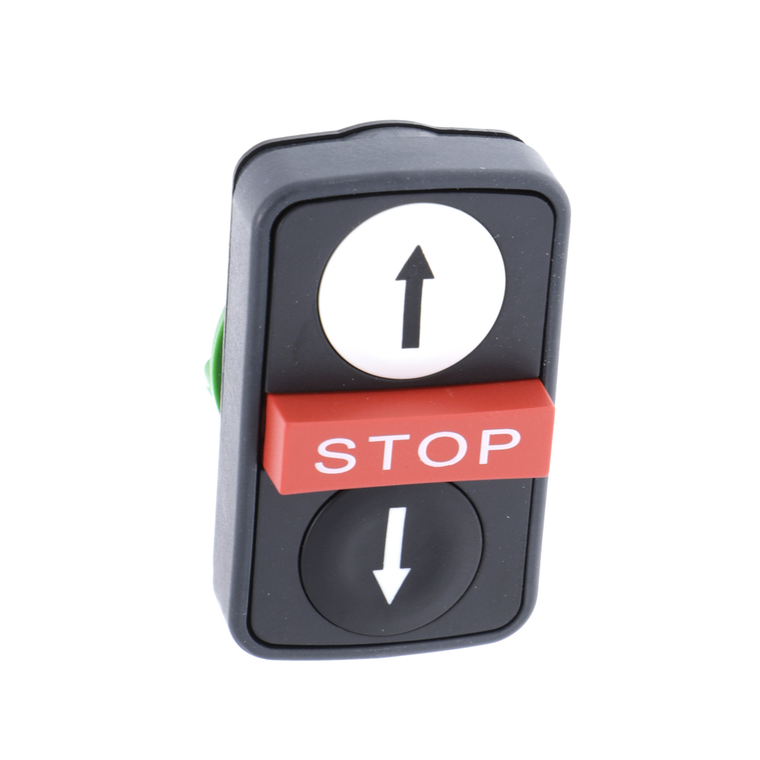

This Harmony XB5, triple head has 1 black and 2 white buttons, operates with a spring return mechanism. It is marked with a "up arrow", "STOP" and "down arrow" symbols. It consits in 3-function head. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Multiple buttons allows single unit to perform a wide array of control functions, reducing cost of multiple cut-outs in control cabinets.
- Electrical Composition Code:
- C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting
- Ambient Air Temperature For Operation:
- -25-70 °C
- Reach Free Of Svhc:
- Yes
- Cad Overall Depth:
- 35 mm
- Mercury Free:
- Yes
- Rohs Exemption Information:
- Yes
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Mounting Diameter:
- 22 mm
- Mechanical Durability:
- 1000000 cycles
- Electrical Shock Protection Class:
- class II IEC 61140
- Product Certifications:
- GL || CSA || LROS (Lloyds register of shipping) || DNV || UL Listed || BV
- Ik Degree Of Protection:
- IK05 IEC 50102
- Station Name:
- XALD 1 cut-out
- Range Of Product:
- Harmony XB5
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- China Rohs Regulation:
- X
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Standards:
- IEC 60947-5-1 || IEC 60947-5-4 || CSA C22.2 No 14 || IEC 60947-1 || JIS C8201-5-1 || UL 508 || JIS C8201-1
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Operators Description:
- white ''up arrow'' - black ''down arrow'' - red ''STOP''
- Cad Overall Width:
- 30 mm
- Sustainable Offer Status:
- Green Premium product
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Net Weight:
- 0.023 kg
- Product Or Component Type:
- head for triple-headed push-button
- Operator Profile:
- red projecting, STOP white) || white flush, up arrow black) || black flush, down arrow white)
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Device Short Name:
- XB5
- Toxic Heavy Metal Free:
- Yes
- Operator Profile:
- 2 flush - 1 central projecting STOP push-buttons
- Circularity Profile:
- ENVEOLI1710010EN
- Cad Overall Height:
- 50 mm
- Shape Of Signaling Unit Head:
- rectangular
- Head Type:
- standard
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Warranty:
- 18 months
- Colour Of Marking:
- black marking when white caps || white marking when green, red or black caps
- Device Presentation:
- basic element
- Environmental Disclosure:
- ENVPEP1710010EN
- Bezel Material:
- dark grey plastic
- Type Of Operator:
- spring return
- Ambient Air Temperature For Storage:
- -40-70 °C
- Ip Degree Of Protection:
- IP67 IEC 60529 || IP69 IEC 60529 || IP69K
