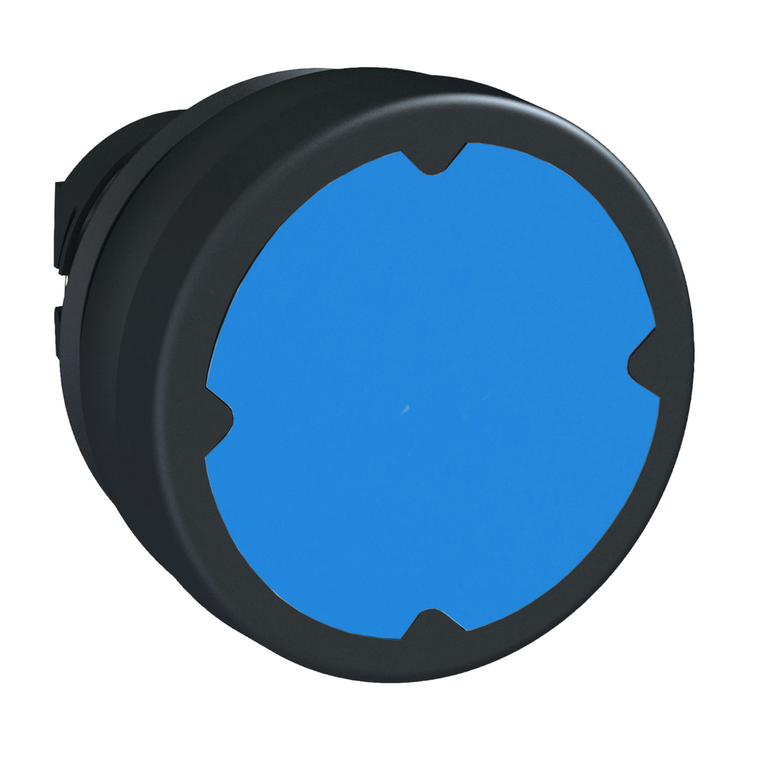

Schneider Electric ZB5AC680 Pushbutton For Harsh Enviroment, Dark Bl
Schneider Electric
$23.37
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This blue button head provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
- Electrical Shock Protection Class:
- class II IEC 61140
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Mechanical Durability:
- 10000000 cycles
- Warranty:
- 18 months
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP69K || IP67
- Product Or Component Type:
- head for push-button
- Cad Overall Width:
- 37 mm
- Cad Overall Height:
- 18.5 mm
- Net Weight:
- 0.024 kg
- Environmental Disclosure:
- ENVPEP1710010EN
- Product Certifications:
- UL || CE || CSA
- Resistance To High Pressure Washer:
- 90 Pa 82.5 °C
- Rohs Exemption Information:
- Yes
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
- Device Presentation:
- basic element
- Range Of Product:
- Harmony XB5
- Head Type:
- standard
- Ambient Air Temperature For Operation:
- -40-70 °C
- Shape Of Signaling Unit Head:
- round
- China Rohs Regulation:
- X
- Sustainable Offer Status:
- Green Premium product
- Operator Additional Information:
- vertical mounting || horizontal mounting
- Operator Profile:
- blue flush, unmarked
- Mounting Diameter:
- 22 mm
- Circularity Profile:
- ENVEOLI1710010EN
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Ambient Air Temperature For Storage:
- -40-85 °C
- Bezel Material:
- black plastic
- Device Short Name:
- ZB5
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Sale Per Indivisible Quantity:
- 1
- Type Of Operator:
- spring return
- Mercury Free:
- Yes
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Reach Free Of Svhc:
- Yes
- Nema Degree Of Protection:
- NEMA 4 UL 508 || NEMA 13 || NEMA 12
- Standards:
- UL 508 || IEC 60947-1 || IEC 60947-5-1 || CSA C22.2
- Ik Degree Of Protection:
- IK03 IEC 62262
- Electrical Composition Code:
- C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting
- Toxic Heavy Metal Free:
- Yes
- Cad Overall Depth:
- 37 mm
