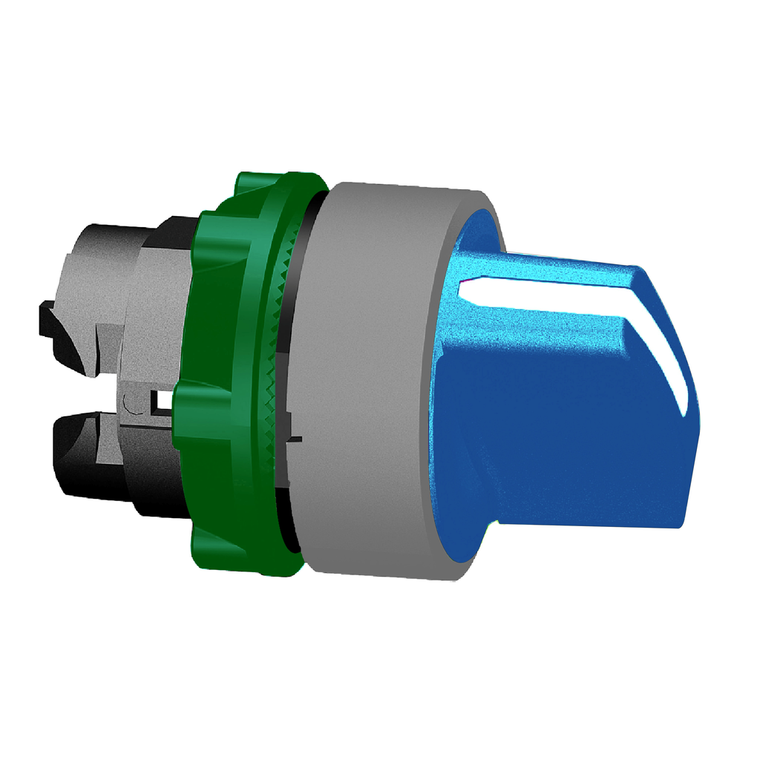

Schneider Electric ZB5AD206C0 Blue Selector Head
Schneider Electric
$19.83
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This switch head with standard handle provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K, making it ideal for operation in harsh environments.
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- China Rohs Regulation:
- X
- Overvoltage Category:
- class II IEC 60536
- Cad Overall Height:
- 29 mm
- Device Presentation:
- basic element
- Ambient Air Temperature For Storage:
- -40-70 °C
- Ip Degree Of Protection:
- IP67 IEC 60529
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Mechanical Durability:
- 1000000 cycles
- Product Or Component Type:
- head for selector switch
- Cad Overall Depth:
- 46 mm
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Ik Degree Of Protection:
- IK06 IEC 50102
- Range Of Product:
- Harmony XB5
- Reach Free Of Svhc:
- Yes
- Mercury Free:
- Yes
- Mounting Diameter:
- 22 mm
- Electrical Composition Code:
- C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1
- Shape Of Signaling Unit Head:
- round
- Ambient Air Temperature For Operation:
- -40-70 °C
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Bezel Material:
- plastic colour plated grey
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Operator Profile:
- blue standard handle
- Protective Treatment:
- TH
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Standards:
- JIS C8201-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || UL 508 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || JIS C8201-1
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Product Certifications:
- GL || UL Listed || BV || LROS (Lloyds register of shipping) || DNV || CSA
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Type Of Operator:
- stay put
- Device Short Name:
- ZB5
- Head Type:
- standard
- Operator Position Information:
- 2 positions 90°
- Toxic Heavy Metal Free:
- Yes
- Sale Per Indivisible Quantity:
- 1
- Rohs Exemption Information:
- Yes
- Net Weight:
- 0.017 kg
- Cad Overall Width:
- 29 mm
