Schneider Electric ZB5AD301C0 Selector Operating Head
Schneider Electric
$22.91
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

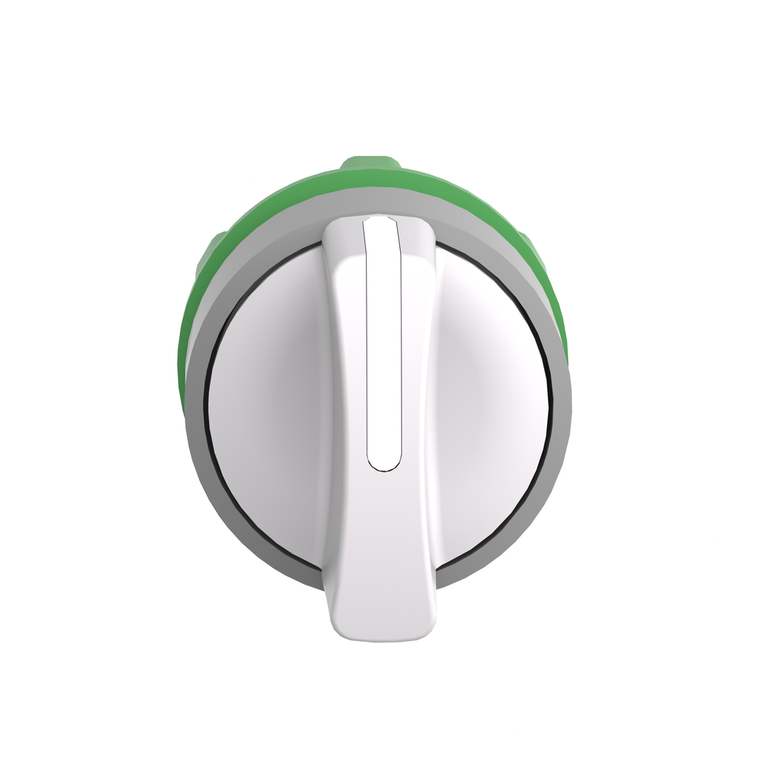

Schneider Electric ZB5AD301C0 Selector Operating Head
This switch head with standard handle provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K, making it ideal for operation in harsh environments.
- Head Type:
- standard
- Ambient Air Temperature For Operation:
- -40-70 °C
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Operator Position Information:
- 3 positions +/- 45°
- Electrical Composition Code:
- C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || SF1 3
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Mounting Diameter:
- 22 mm
- Rohs Exemption Information:
- Yes
- Type Of Operator:
- stay put
- Ik Degree Of Protection:
- IK06 IEC 50102
- Toxic Heavy Metal Free:
- Yes
- Device Short Name:
- ZB5
- Net Weight:
- 0.017 kg
- Standards:
- JIS C8201-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || UL 508 || JIS C8201-1
- Ambient Air Temperature For Storage:
- -40-70 °C
- Ip Degree Of Protection:
- IP67 IEC 60529
- Overvoltage Category:
- class II IEC 60536
- Mercury Free:
- Yes
- Range Of Product:
- Harmony XB5
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Operator Profile:
- white standard handle
- Cad Overall Width:
- 29 mm
- Mechanical Durability:
- 1000000 cycles
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Protective Treatment:
- TH
- Shape Of Signaling Unit Head:
- round
- Product Or Component Type:
- head for selector switch
- Device Presentation:
- basic element
- Reach Free Of Svhc:
- Yes
- Bezel Material:
- plastic colour plated grey
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- China Rohs Regulation:
- X
- Product Certifications:
- CSA || UL Listed || DNV || LROS (Lloyds register of shipping) || BV || GL
- Cad Overall Height:
- 29 mm
- Sale Per Indivisible Quantity:
- 1
- Cad Overall Depth:
- 46 mm
- Datasheet:
- View
