Schneider Electric ZB5AFDC Key Push And Turn Op. Hea

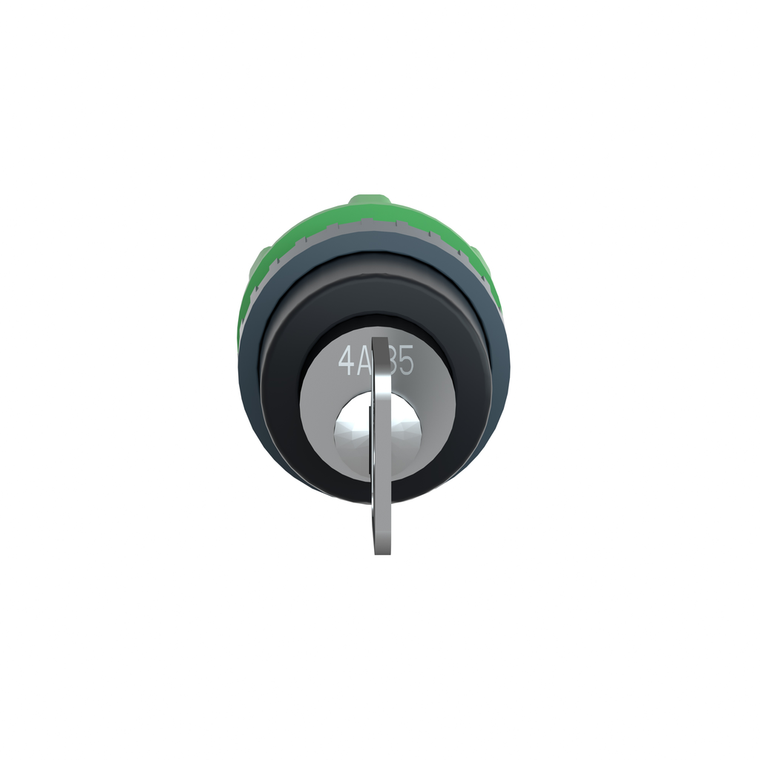

This Harmony ZB5AFDC is a key-operated push button head push-turn release, key operated Dom 4A185. It is part of the range Harmony XB5 diameter 22mm modular plastic push buttons, switches, and pilot lights.
- Shape Of Signaling Unit Head:
- round
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Mechanical Durability:
- 500000 cycles
- Cad Overall Width:
- 29 mm
- Cad Overall Depth:
- 62 mm
- Warranty:
- 18 months
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- China Rohs Regulation:
- X
- Operator Profile:
- key switch
- Bezel Material:
- dark grey plastic
- Type Of Keylock:
- Dom 4A185
- Ip Degree Of Protection:
- IP66 IEC 60529
- Standards:
- IEC 60947-5-5 || JIS C8201-5-1 || IEC 60947-5-1 || UL 508 || IEC 60947-1 || CSA C22.2 No 14 || IEC 60947-5-4 || JIS C8201-1
- Type Of Operator:
- turn to release
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Locking Position:
- rest position
- Mounting Diameter:
- 22 mm
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Electrical Composition Code:
- C12 6 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting || C13 6 single and double front mounting
- Ambient Air Temperature For Operation:
- -25-70 °C
- Head Type:
- standard
- Cad Overall Height:
- 29 mm
- Range Of Product:
- Harmony XB5
- Key Withdrawal Position:
- rest position
- Product Or Component Type:
- head for non-illuminated push-button
- Protective Treatment:
- TH
- Ambient Air Temperature For Storage:
- -40-70 °C
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Product Certifications:
- GL || CSA || UL Listed || DNV || BV || LROS (Lloyds register of shipping) || RINA
- Device Short Name:
- ZB5
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Sale Per Indivisible Quantity:
- 1
- Electrical Shock Protection Class:
- class II IEC 60536
- Environmental Disclosure:
- ENVPEP1710010EN
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Ik Degree Of Protection:
- IK03 IEC 50102
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Circularity Profile:
- ENVEOLI1710010EN
- Net Weight:
- 0.05 kg
- Datasheet:
- View
