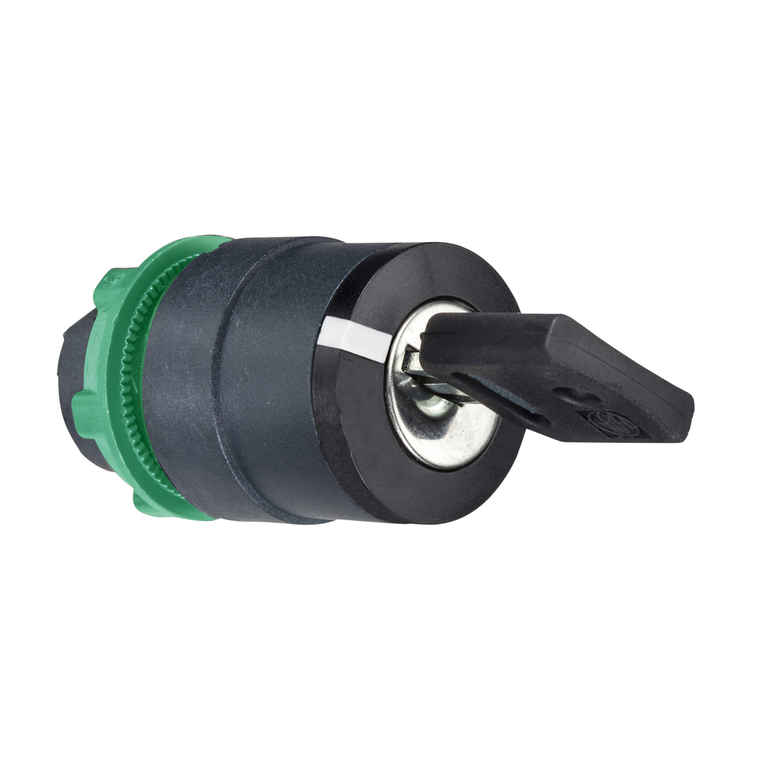

Schneider Electric ZB5AG0814 Key Selector Operating He
This head with key (key no.520E) provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete key selector switch units. It provides a secure manner for authorized staff to switch between process or machine operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
- Shape Of Signaling Unit Head:
- round
- Net Weight:
- 0.057 kg
- Environmental Disclosure:
- ENVPEP1710010EN
- Warranty:
- 18 months
- Head Type:
- standard
- Key Withdrawal Position:
- left
- Ik Degree Of Protection:
- IK06 IEC 50102
- Type Of Keylock:
- key 520E
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Product Or Component Type:
- head for key selector switch
- Mounting Diameter:
- 22 mm
- Ambient Air Temperature For Storage:
- -40-70 °C
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Rohs Exemption Information:
- Yes
- Cad Overall Width:
- 29 mm
- Electrical Composition Code:
- C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C3 6 single front mounting || SF1 3
- Circularity Profile:
- ENVEOLI1710010EN
- Protective Treatment:
- TH
- Bezel Material:
- dark grey plastic
- Range Of Product:
- Harmony XB5
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ambient Air Temperature For Operation:
- -40-70 °C
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Cad Overall Depth:
- 72 mm
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Cad Overall Height:
- 29 mm
- Mechanical Durability:
- 1000000 cycles
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Device Short Name:
- ZB5
- Product Certifications:
- DNV || CSA || BV || UL Listed || GL || LROS (Lloyds register of shipping)
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Device Presentation:
- basic element
- Sale Per Indivisible Quantity:
- 1
- Overvoltage Category:
- class II IEC 60536
- Standards:
- EN/IEC 60947-5-4 || EN/IEC 60947-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-5-1 || UL 508 || JIS C8201-1
- Operator Position Information:
- 3 positions +/- 45°
- Mercury Free:
- Yes
- Operator Profile:
- black key switch
- Sustainable Offer Status:
- Green Premium product
- Type Of Operator:
- right to centre spring return
- China Rohs Regulation:
- X
