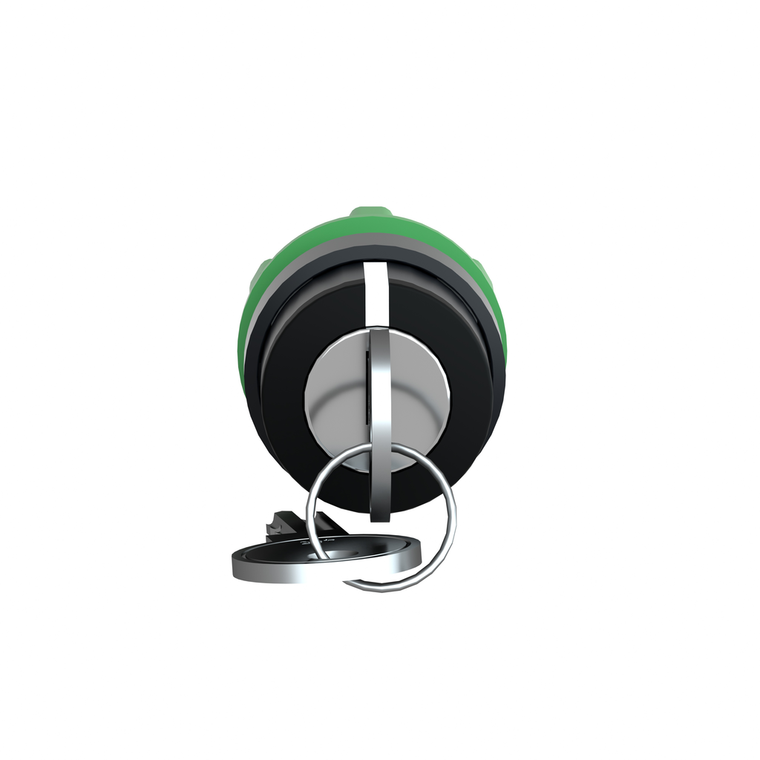

Schneider Electric ZB5AG2 Key Selector Operating He

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB5AG2 Key Selector Operating He

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB5AG2

UPC:

3389110905809

MPN:

Condition:

New

Operator Profile:

black key switch

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 || IP69 || IP69K

Type Of Operator:

stay put

Ambient Air Temperature For Operation:

-40-70 °C

Type Of Keylock:

key 455

Cad Overall Height:

29 mm

Station Name:

XALD 1...5 cut-outs || XALK 2...5 cut-outs

Key Withdrawal Position:

left

Ambient Air Temperature For Storage:

-40-70 °C

Overvoltage Category:

class II IEC 60536

Cad Overall Depth:

72 mm

Circularity Profile:

ENVEOLI1710010EN

Mounting Diameter:

22 mm

Device Short Name:

ZB5

Cad Overall Width:

29 mm

Warranty:

18 months

Range Of Product:

Harmony XB5 || Harmony XALF

Net Weight:

0.057 kg

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

China Rohs Regulation:

X

Standards:

UL 508 || IEC 60947-5-1 || IEC 60947-1 || CSA C22.2 No 14 || JIS C8201-5-1 || IEC 60947-5-4 || JIS C8201-1

Device Presentation:

basic element

Bezel Material:

dark grey plastic

Shape Of Signaling Unit Head:

round

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Environmental Disclosure:

ENVPEP1710010EN

Mechanical Durability:

1000000 cycles

Sale Per Indivisible Quantity:

1

Protective Treatment:

TH

Ik Degree Of Protection:

IK06 IEC 50102

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Head Type:

standard

Operator Position Information:

2 positions 90°

Product Certifications:

CSA || BV || UL Listed || DNV || GL || LROS (Lloyds register of shipping)

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Product Or Component Type:

head for key selector switch

Electrical Composition Code:

C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C3 6 single front mounting || SF1 3
