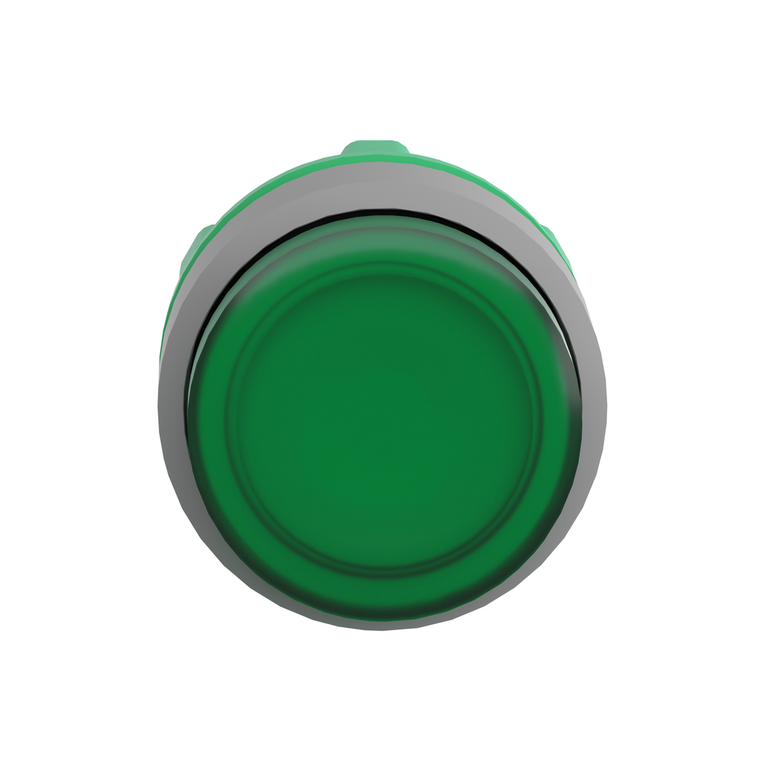

Schneider Electric ZB5AH33C0 Double Ill. Pushbutton Ha
Schneider Electric
$45.91
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This illuminated button head for universal LED provides a versatile interface for controlling your machines. It is easily installed/replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color and by touch due to projecting element, minimizing errors in machine control. It is imapct, dust, water and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.
- Product Or Component Type:
- head for illuminated push-button
- Cad Overall Depth:
- 33 mm
- Cad Overall Height:
- 29 mm
- Electrical Composition Code:
- M5 2 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED
- Protective Treatment:
- TH
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Mechanical Durability:
- 5000000 cycles
- Product Compatibility:
- universal LED
- Type Of Operator:
- push-push
- Cad Overall Width:
- 29 mm
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Sale Per Indivisible Quantity:
- 1
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Device Presentation:
- basic element
- Range Of Product:
- Harmony XB5
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Mounting Diameter:
- 22 mm
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Toxic Heavy Metal Free:
- Yes
- Operator Profile:
- green projecting, unmarked
- Net Weight:
- 0.017 kg
- Bezel Material:
- plastic colour plated grey
- Reach Free Of Svhc:
- Yes
- Mercury Free:
- Yes
- Standards:
- EN/IEC 60947-1 || EN/IEC 60947-5-5 || UL 508 || CSA C22.2 No 14 || JIS C8201-5-1 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || JIS C8201-1
- Shape Of Signaling Unit Head:
- round
- Product Certifications:
- UL Listed || GL || BV || DNV || CSA || LROS (Lloyds register of shipping)
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Ip Degree Of Protection:
- IP66 IEC 60529
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Head Type:
- standard
- Ambient Air Temperature For Storage:
- -40-70 °C
- Ik Degree Of Protection:
- IK05 IEC 50102
- Rohs Exemption Information:
- Yes
- Device Short Name:
- ZB5
- Ambient Air Temperature For Operation:
- -25-70 °C
- Electrical Shock Protection Class:
- class II IEC 60536
- China Rohs Regulation:
- X
- Datasheet:
- View
