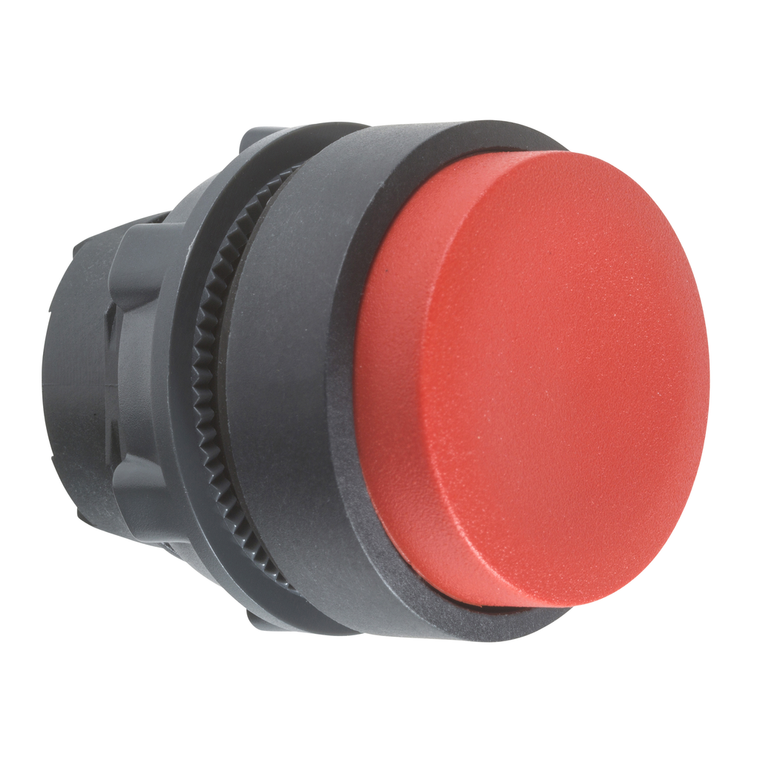

Schneider Electric ZB5AH4 Push / Push To Release He
Schneider Electric
$12.94
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This red projecting button head provides an ergonomic interface for controlling your machines. It is easily combined with Harmony range of push buttons and contact blocks. Thus it is possible to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to its clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
- Device Short Name:
- ZB5
- Product Certifications:
- LROS (Lloyds register of shipping) || BV || UL Listed || CSA || DNV || GL
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Mercury Free:
- Yes
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Type Of Operator:
- push-push
- Net Weight:
- 0.018 kg
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Operator Profile:
- red projecting, unmarked
- Circularity Profile:
- ENVEOLI1710010EN
- Cad Overall Height:
- 29 mm
- Shape Of Signaling Unit Head:
- round
- Device Presentation:
- basic element
- Ambient Air Temperature For Storage:
- -40-70 °C
- Cad Overall Width:
- 29 mm
- Warranty:
- 18 months
- China Rohs Regulation:
- X
- Environmental Disclosure:
- ENVPEP1710010EN
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Overvoltage Category:
- class II IEC 60536
- Protective Treatment:
- TH
- Cad Overall Depth:
- 33 mm
- Electrical Composition Code:
- C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting || C9 3 single front mounting
- Sustainable Offer Status:
- Green Premium product
- Ambient Air Temperature For Operation:
- -40-70 °C
- Mechanical Durability:
- 2000000 cycles
- Rohs Exemption Information:
- Yes
- Mounting Diameter:
- 22 mm
- Product Or Component Type:
- head for non-illuminated push-button
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Head Type:
- standard
- Sale Per Indivisible Quantity:
- 1
- Range Of Product:
- Harmony XB5
- Bezel Material:
- dark grey plastic
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Ik Degree Of Protection:
- IK03 IEC 50102
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Datasheet:
- View
