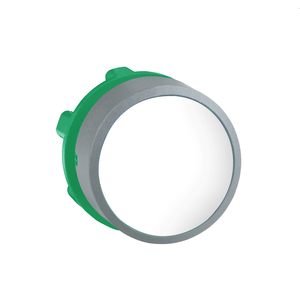

Schneider Electric ZB5AH5C0 Push / Push To Release He
Schneider Electric
$27.66
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This button head provides an ergonomic interface for controlling your machines. It is easily combined with Harmony range of pushbuttons and contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to its clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Bezel Material:
- plastic colour plated grey
- Sale Per Indivisible Quantity:
- 1
- Range Of Product:
- Harmony XB5
- Reach Free Of Svhc:
- Yes
- China Rohs Regulation:
- X
- Toxic Heavy Metal Free:
- Yes
- Product Certifications:
- GL || BV || DNV || UL Listed || CSA || LROS (Lloyds register of shipping)
- Overvoltage Category:
- class II IEC 60536
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Cad Overall Depth:
- 33 mm
- Type Of Operator:
- push-push
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Ambient Air Temperature For Operation:
- -40-70 °C
- Device Short Name:
- ZB5
- Mercury Free:
- Yes
- Mounting Diameter:
- 22 mm
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Net Weight:
- 0.018 kg
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Rohs Exemption Information:
- Yes
- Head Type:
- standard
- Product Or Component Type:
- head for non-illuminated push-button
- Ambient Air Temperature For Storage:
- -40-70 °C
- Operator Profile:
- yellow projecting, unmarked
- Ik Degree Of Protection:
- IK03 IEC 50102
- Cad Overall Height:
- 29 mm
- Shape Of Signaling Unit Head:
- round
- Electrical Composition Code:
- C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting || C9 3 single front mounting
- Protective Treatment:
- TH
- Mechanical Durability:
- 2000000 cycles
- Cad Overall Width:
- 29 mm
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Datasheet:
- View
